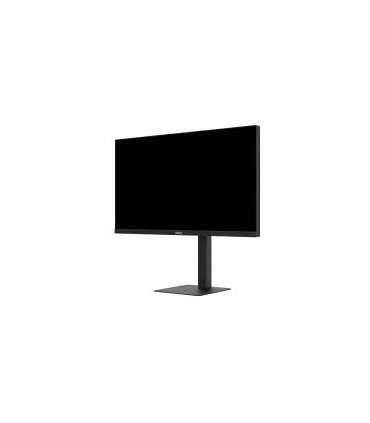

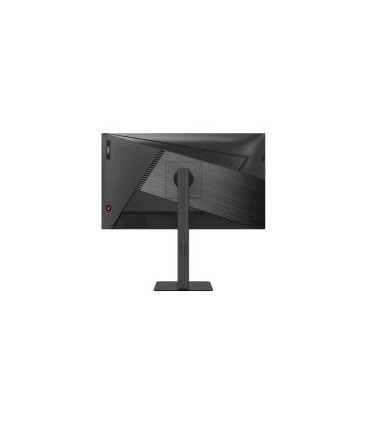

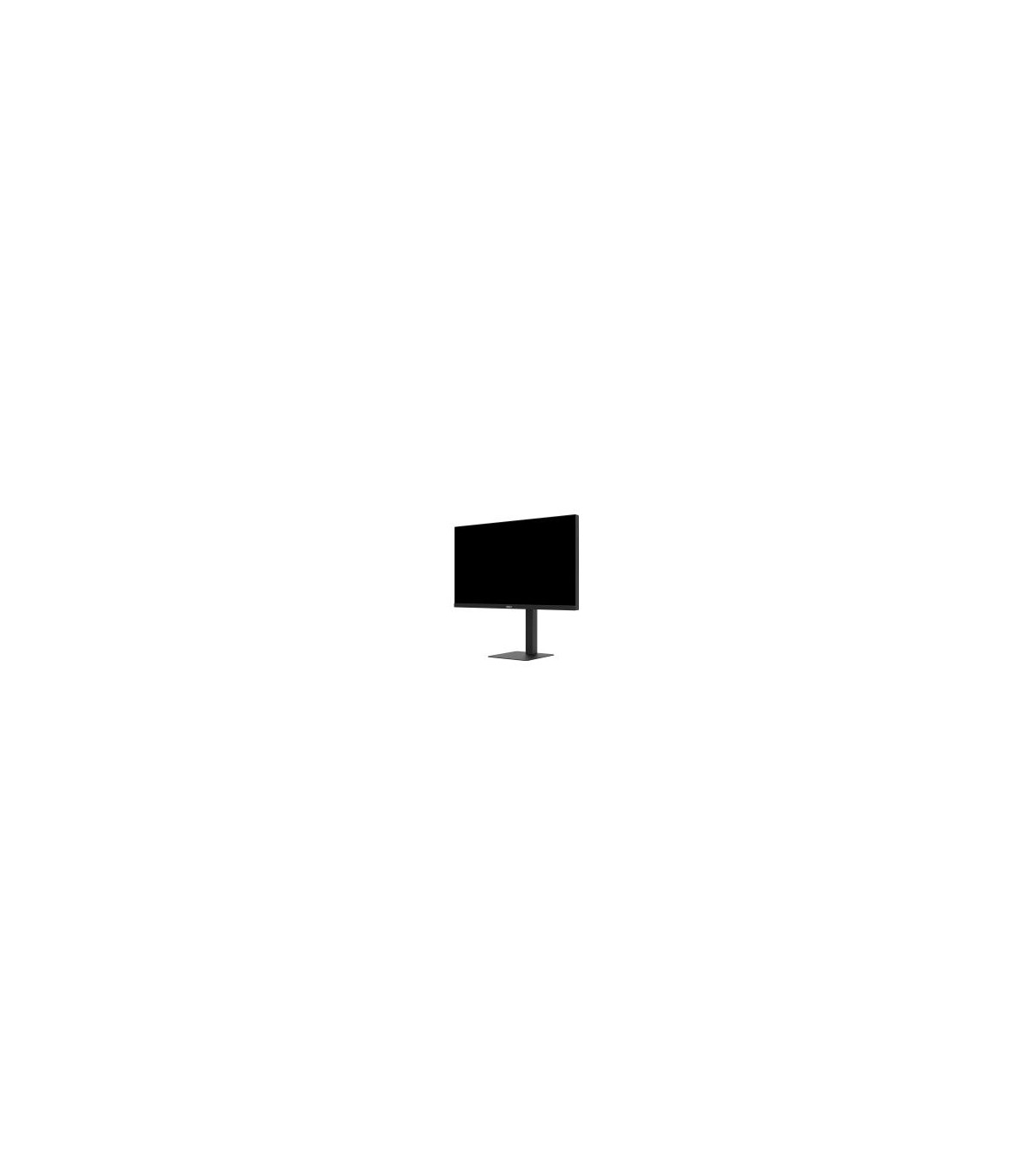

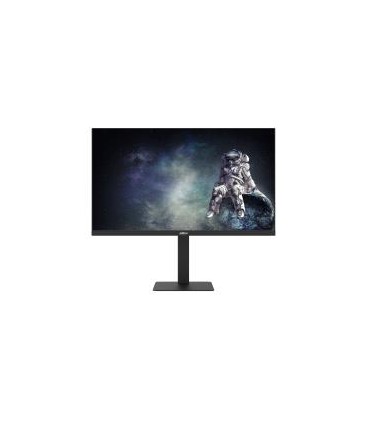

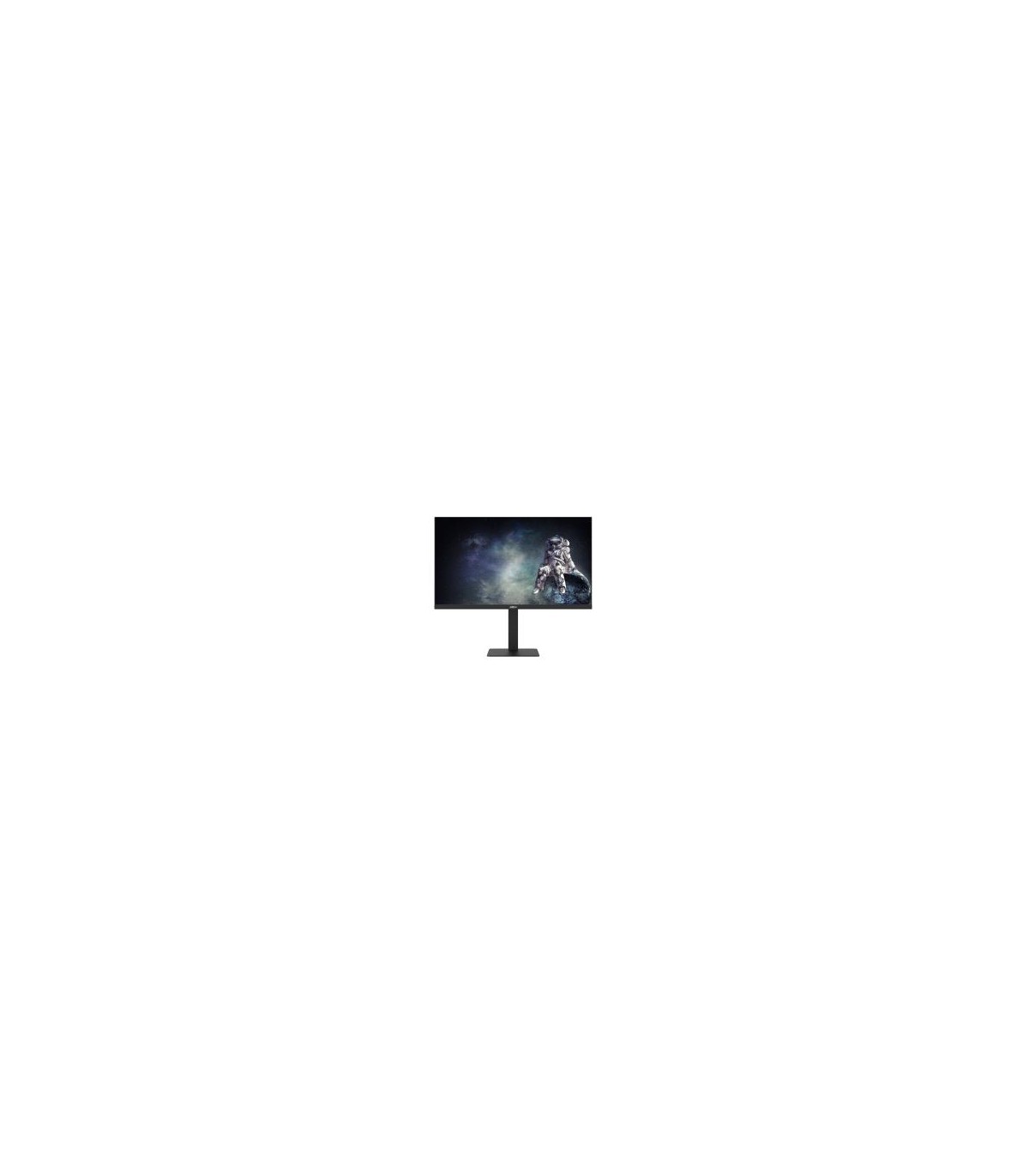

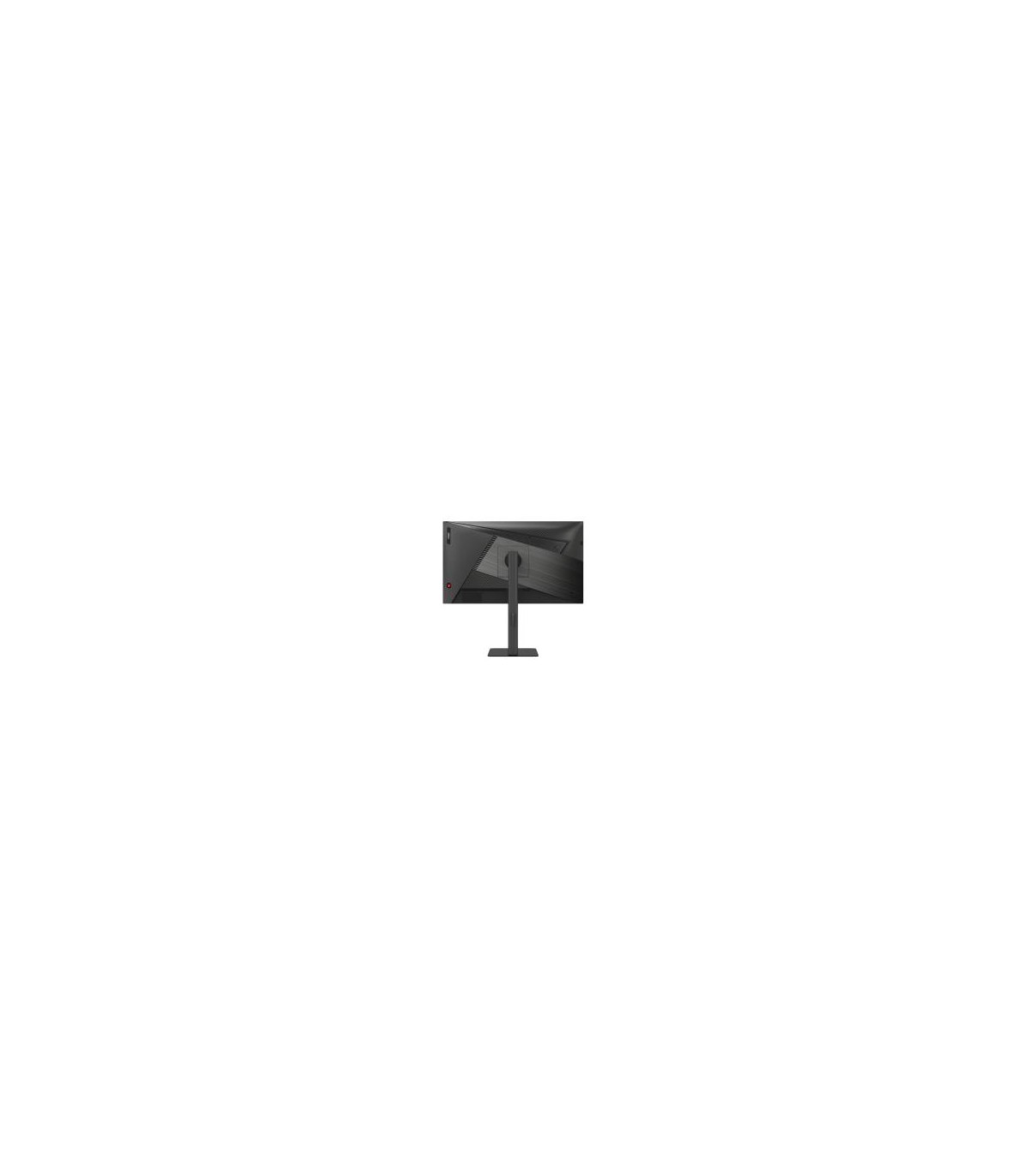

DAHUA LCD Monitor 24.5 " 1920 x 1080 pixels Full HD Native aspect ratio 16:9 LCD DHI-LM25-E241A

Tehniline kirjeldus

Kõrguse reguleerimine

Yes

Energia

EPREL Registration Number

2184926

Liidesed

HDMI

Yes

Andmeside

Bluetooth

No

Muud funktsioonid

Unit Box Width

0.17

Unit Box Length

0.645

Unit Box Height

0.47

Category Code

LC3

Touchscreen

No

Panel type

IPS

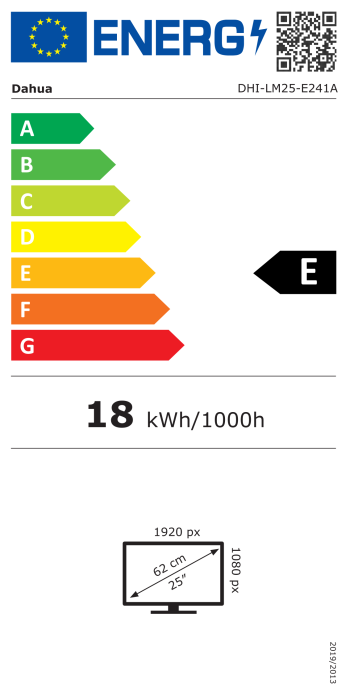

Energy efficiency class

E

EPREL Version Number

1

Data Sheet (Link)

https://eprel.ec.europa.eu/api/product/2184926/fiches?language=EN

Pivot

Yes

Display technology

LCD

Power adapter included

Yes

Unit Calculated Volume

0.05154 cubm

Product Net Weight

4.65 kg

Unit Calculated Weight

6.55 kg

Summary

Dahua Technology LM25-E241A. Display diagonal: 62.2 cm (24.5"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LCD, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. VESA mounting,

Colour gamut standard

DCI-P3/NTSC

Contrast ratio (typical)

1000:1

Display brightness (typical)

300 cd/m²

Display diagonal

24.5 "

Display diagonal (metric)

62 cm

Display number of colours

16.7 million colours

Display resolution

1920 x 1080 pixels

HD type

Full HD

LED backlight

Yes

Maximum refresh rate

320 Hz

Native aspect ratio

16:9

Pixel pitch

0.2832 x 0.2802 mm

Viewing angle, horizontal

178 °

Viewing angle, vertical

178 °

AMD FreeSync

No

NVIDIA G-SYNC

No

Built-in camera

No

Built-in speaker(s)

No

Market positioning

Gaming

Product colour

Black

Built-in USB hub

No

DisplayPort version

1.4

DisplayPorts quantity

2

HDMI ports quantity

2

HDMI version

2.1

Headphone out

Yes

Adjustable height (max)

110 mm

Panel mounting interface

100 x 100 mm

Swivel angle range

-30 - 30 °

Swivelling

Yes

Tilt adjustment

Yes

Tilt angle range

-5 - 15 °

VESA mounting

Yes

Energy consumption (SDR) per 1000 hours

18 kWh

Energy efficiency class (HDR)

Not available

Energy efficiency class (SDR)

E

Power consumption (off)

0.3 W

Power consumption (standby)

0.5 W

Power consumption (typical)

29 W

Power supply type

Internal

Depth (with stand)

198 mm

Depth (without stand)

67.9 mm

Height (with stand)

492.2 mm

Height (without stand)

327.3 mm

Weight (without stand)

4650 g

Width (with stand)

557.7 mm

Width (without stand)

557.7 mm

Package depth

170 mm

Package height

471 mm

Package weight

6200 g

Package width

644 mm

Cables included

HDMI

Stand included

Yes

Viewable size, horizontal

543.744 mm

Viewable size, vertical

302.616 mm

VESA Adaptive Sync support

Yes

Feet colour

Black

Front bezel colour

Black

Pivot angle

-90 - 90 °

Plug and Play

Yes

AC adapter output voltage

12 V

Energy efficiency scale

A to G

Input current

4 A

Pixel density

89.91 ppi

Supported graphics resolutions

1920 x 1080 (HD 1080)

Surface hardness

3H

Power consumption (max)

32 W

Operating relative humidity (H-H)

10 - 85 %

Operating temperature (T-T)

0 - 40 °C

Storage relative humidity (H-H)

5 - 90 %

Compliance certificates

CE/Electromagnetic Compatibility (EMC)/Low Voltage Directive (LVD)

Backlight type

Edge LED

Wall mountable

Yes

Supported video modes

1080p

Wi-Fi

No

Storage temperature (T-T)

-20 - 60 °C

Bezel width (bottom)

16.4 mm

Bezel width (side)

2.4 mm

Bezel width (top)

2.4 mm

Manual

Yes

Response time (MPRT)

1 ms

Frameless design

No

LED indicators

Status

NTSC coverage (typical)

85 %

DCI-P3 coverage

95 %

Haze rate

25 %

Illuminated stand

No

Automatic brightness control

No
