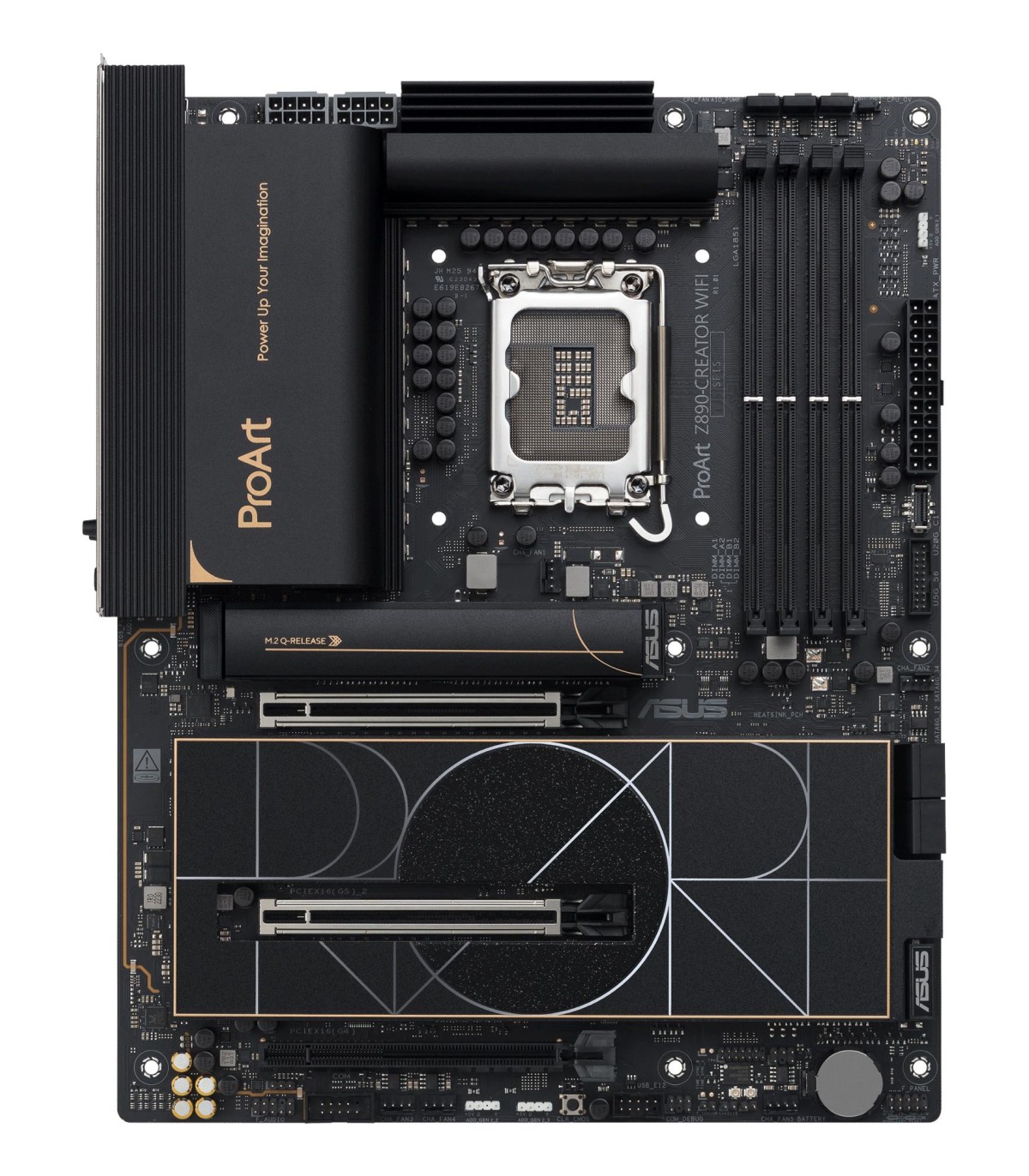

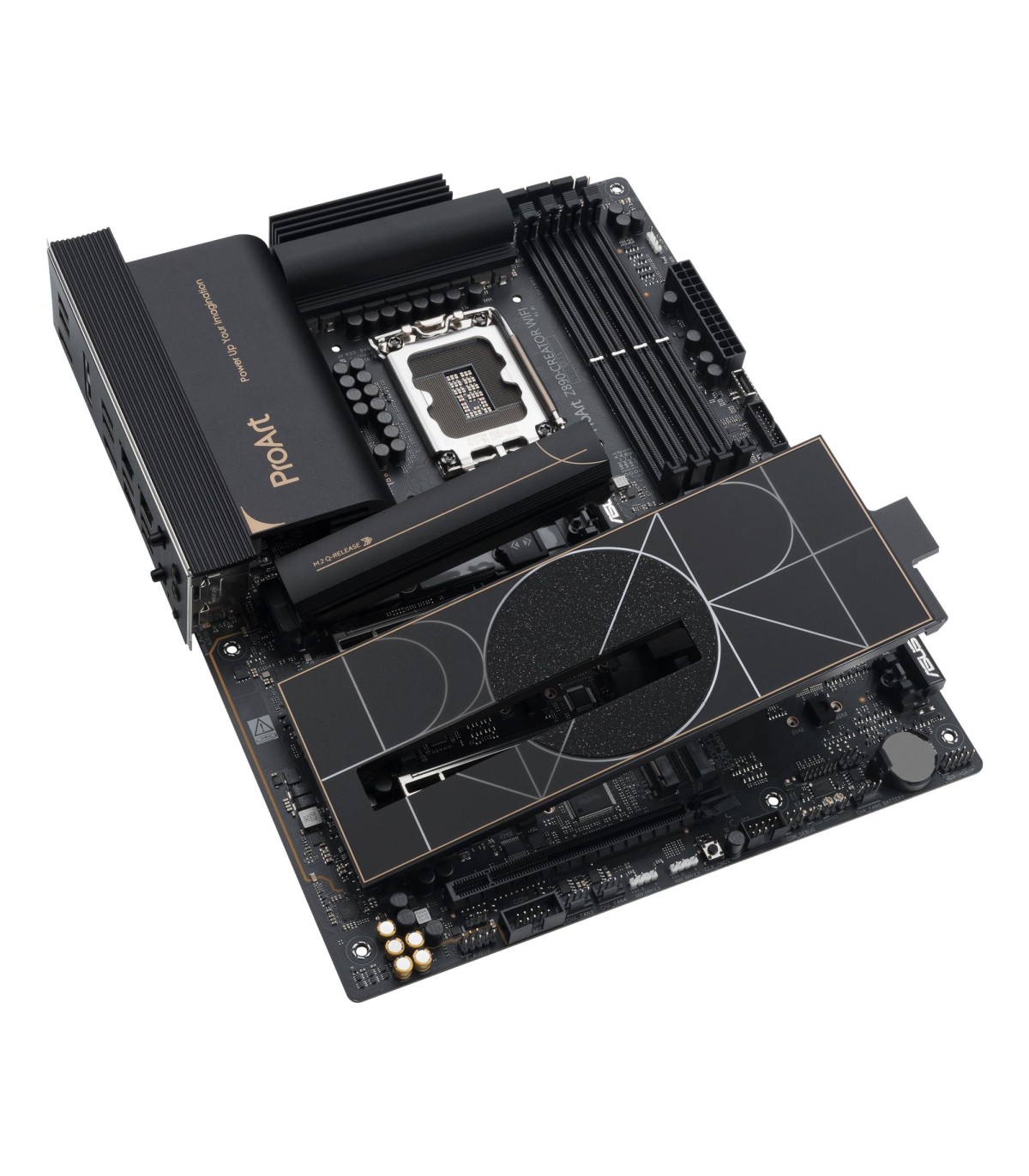

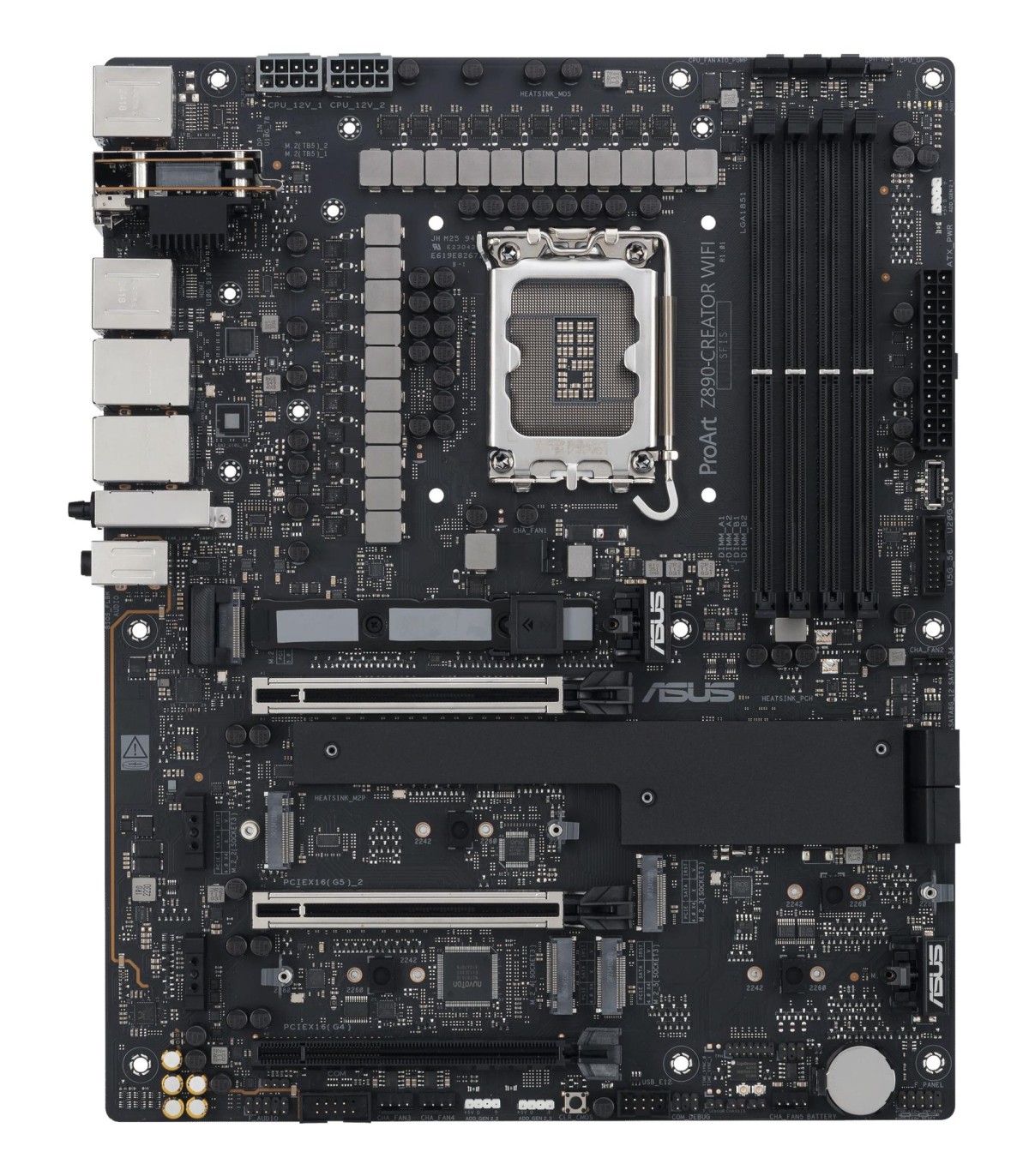

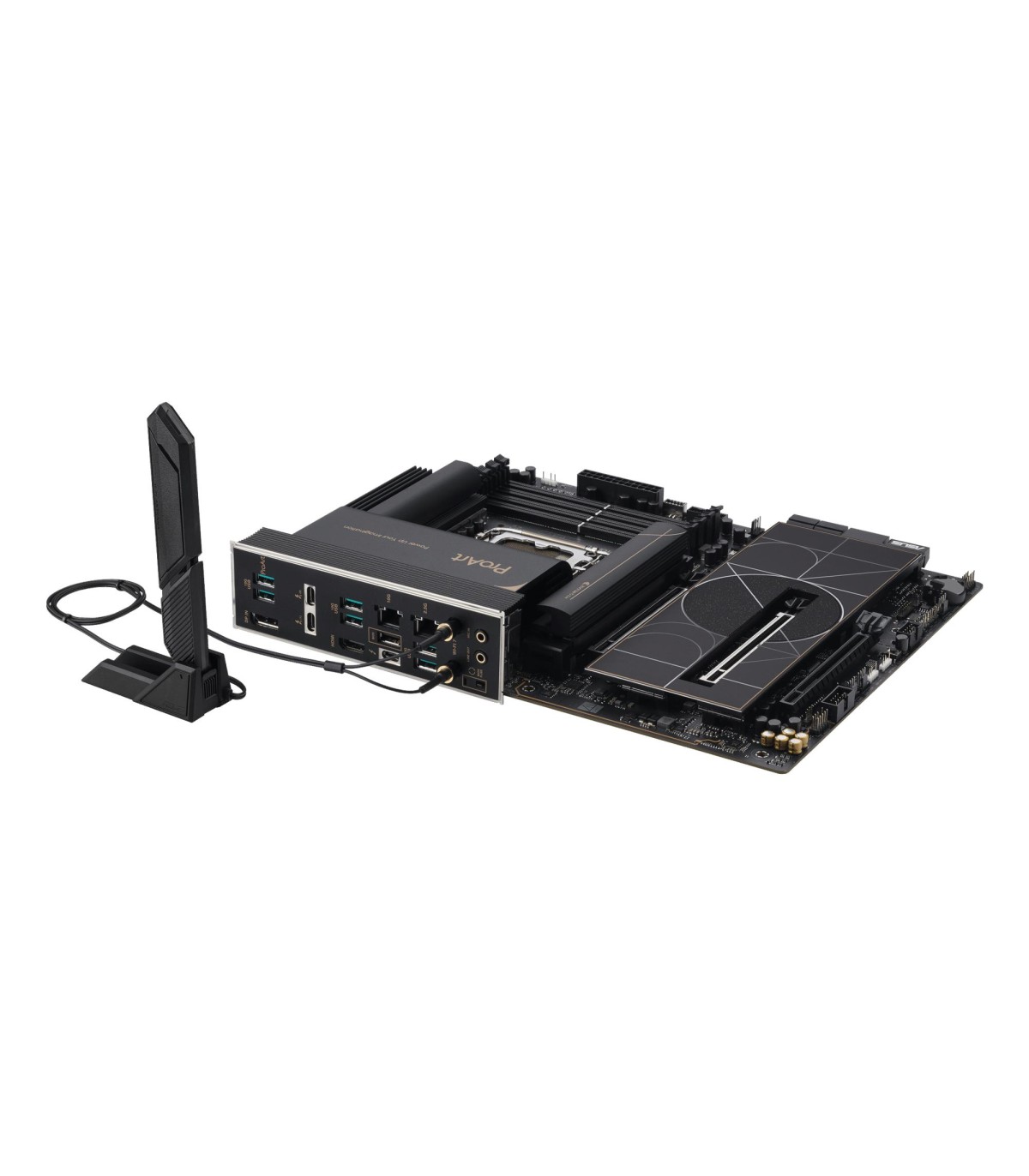

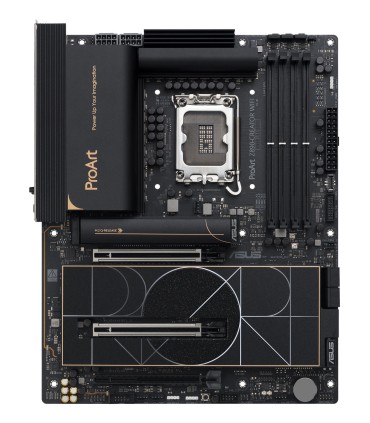

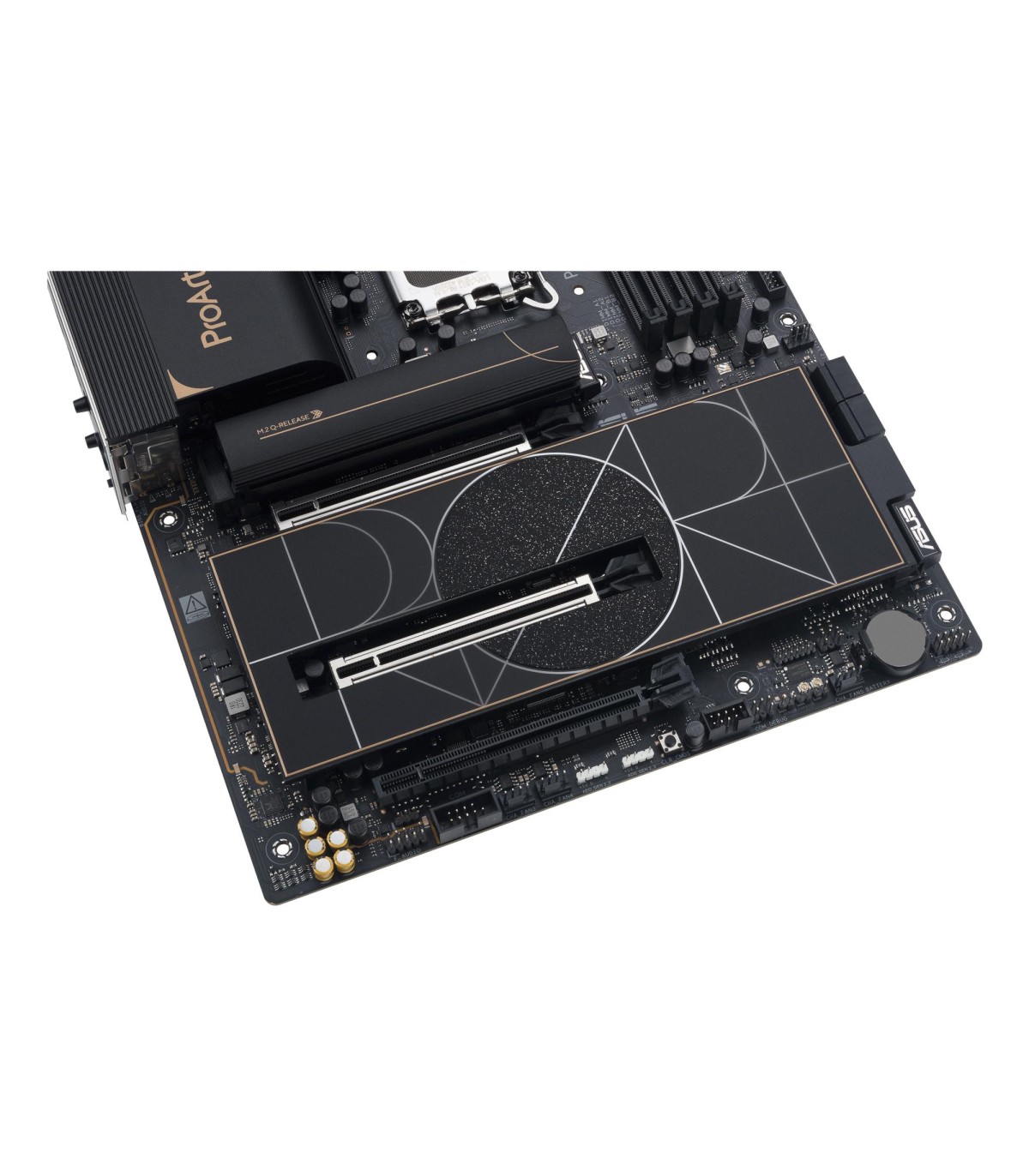

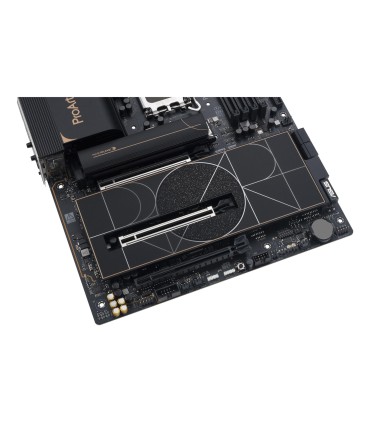

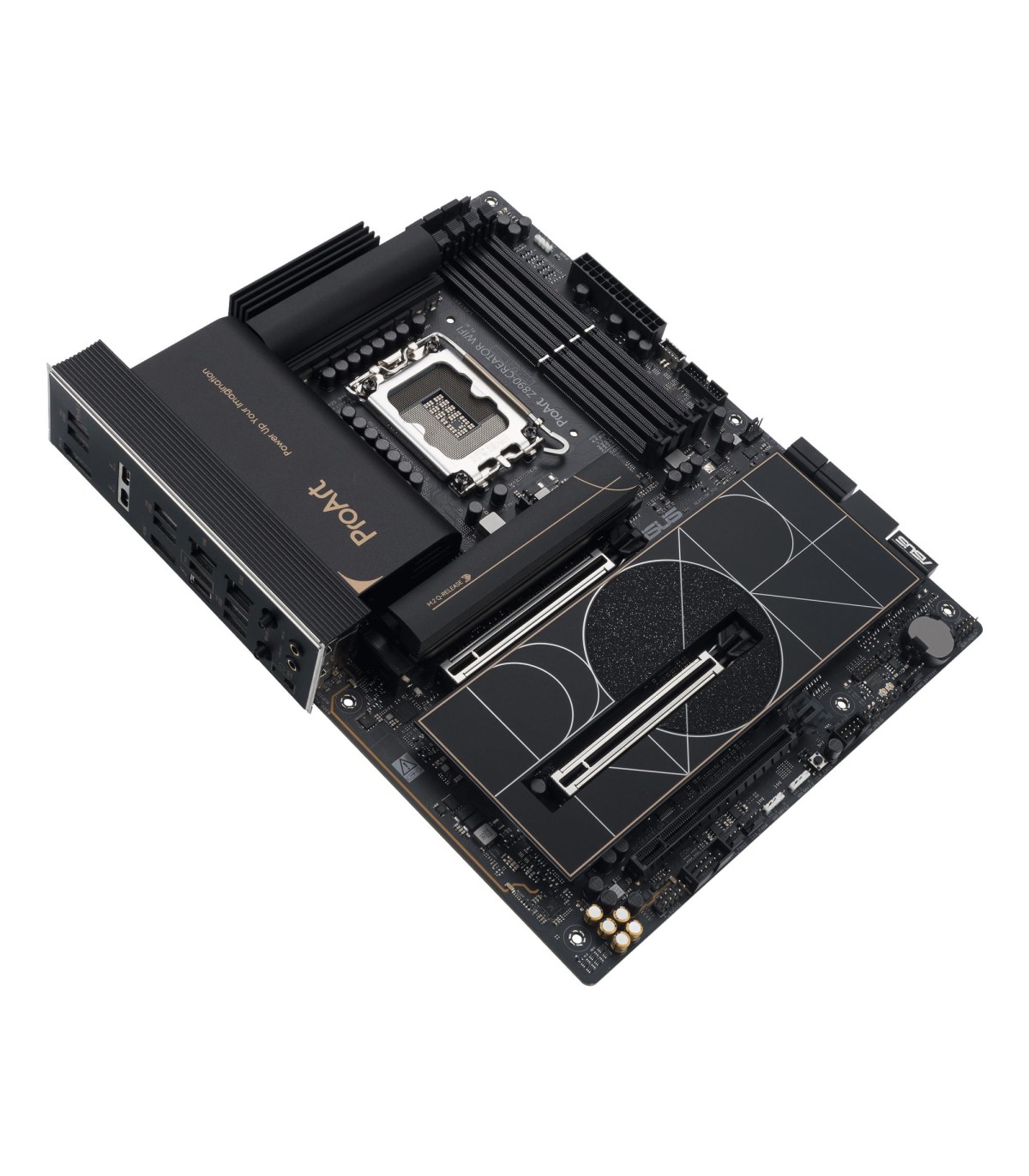

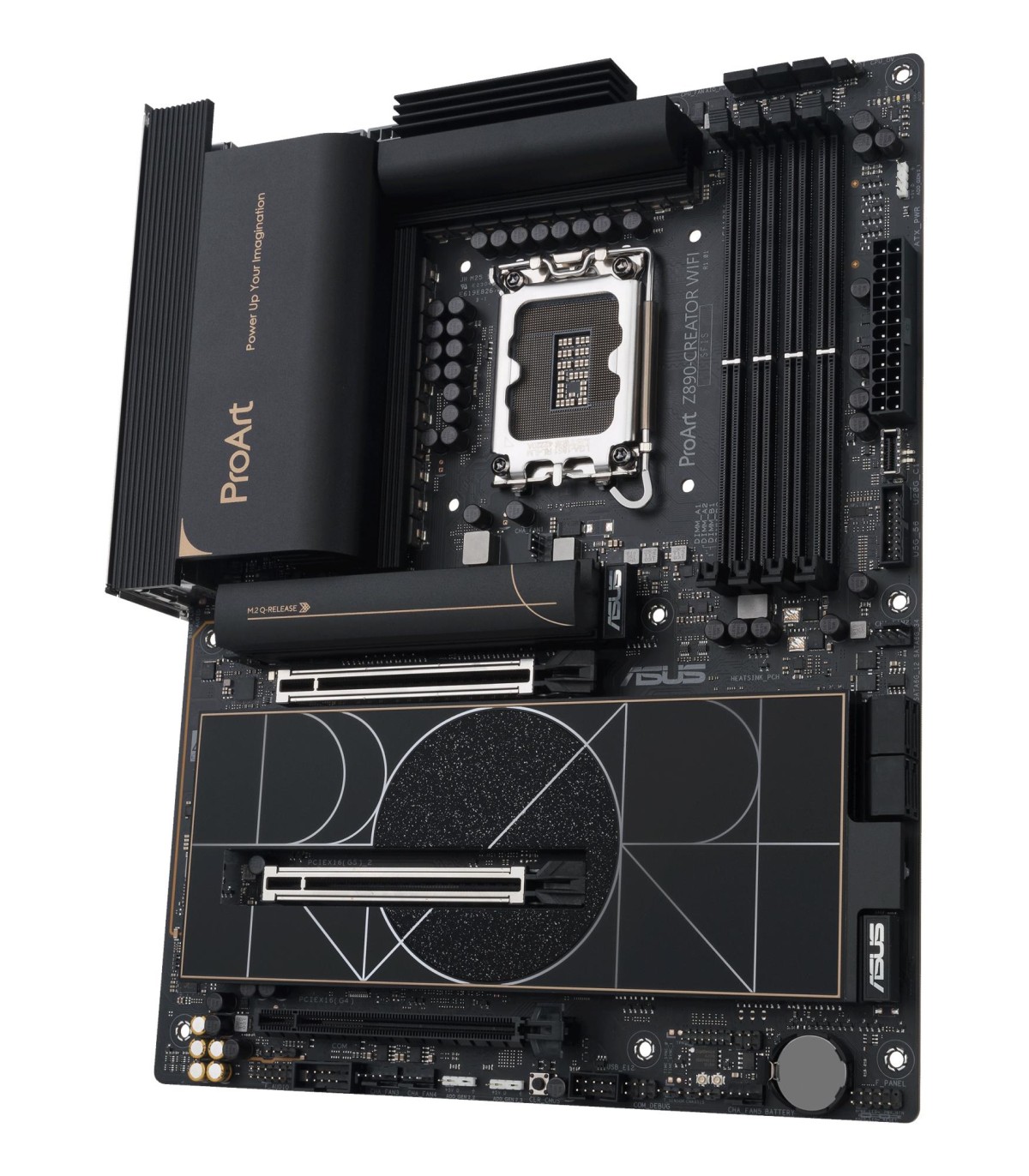

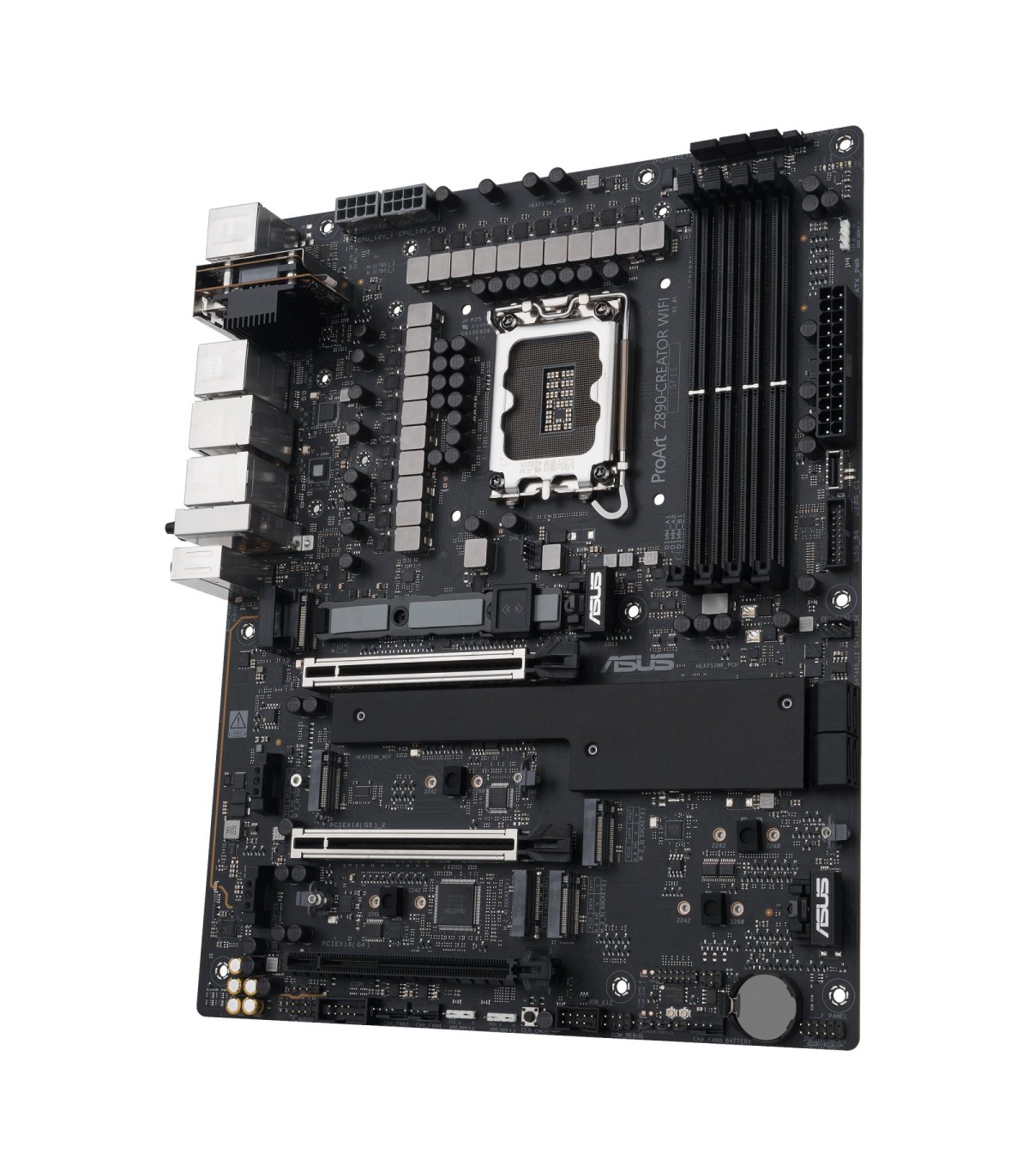

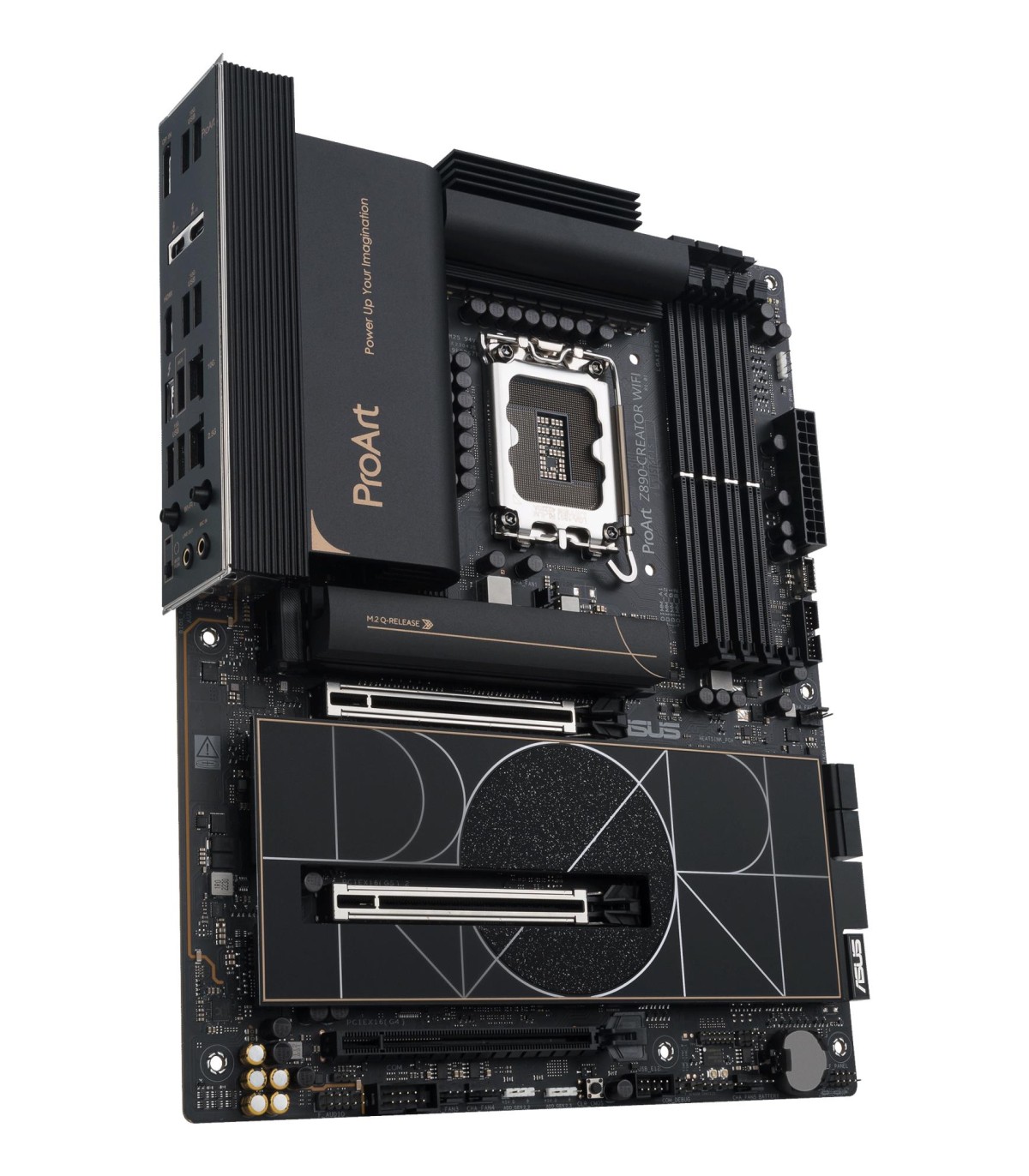

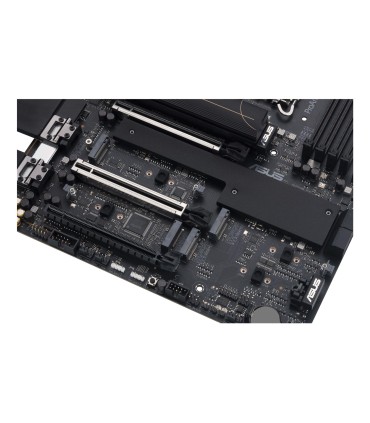

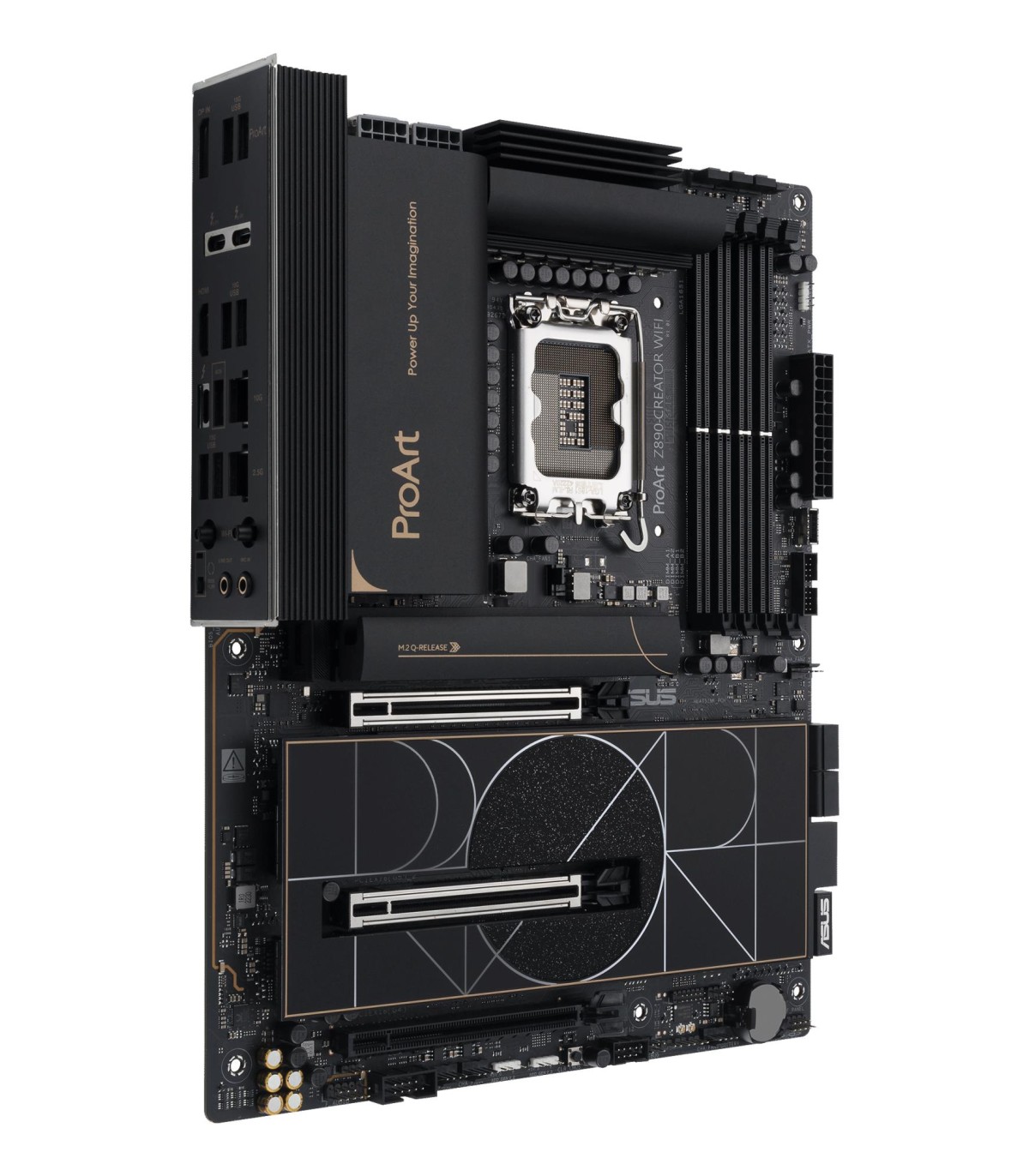

ASUS Mainboard Intel Z890 LGA1851 ATX Memory DDR5 Memory slots 4 1xPCI-Express 4.0 16x 2xPCI-Express 5.0 16x 5xM.2 1xHDMI 1xDis

Andmeside

Bluetooth

Yes

Muud funktsioonid

Depth

244 mm

Width

305 mm

Unit Box Width

0.074

Unit Box Length

0.46

Unit Box Height

0.31

Category Code

MBI

Model

ProArt Z890-CREATOR WIFI

Bluetooth version

5.4

Unit Calculated Volume

0.01055 cubm

Unit Calculated Weight

2.96 kg

Units per Shipping Box

5

Summary

ASUS PROART Z890-CREATOR WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. S

Product colour

Black

DisplayPort version

2.1

DisplayPorts quantity

1

HDMI ports quantity

1

HDMI version

2.1

Package depth

281 mm

Package height

244 mm

Package weight

2354 g

Package width

356 mm

Cables included

SATA

Weight

1965 g

Headphone outputs

1

Wi-Fi

Yes

Ethernet LAN (RJ-45) ports

2

Ethernet LAN

Yes

Wi-Fi standards

Wi-Fi 7 (802.11be)

Maximum resolution

7680 x 4320 pixels

Parallel processing technology support

Not supported

USB 2.0 ports quantity

1

Number of storage drives supported

9

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

6

Number of HDDs supported

4

ATX Power connector (24-pin)

Yes

EPS power connector (8-pin)

Yes

Processor manufacturer

Intel

Maximum internal memory

192 GB

Memory channels

Dual-channel

On-board graphics card

No

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Audio chip

Realtek ALC1220P

Motherboard chipset

Intel Z890

Number of SATA III connectors

4

Line-in

Yes

PCI Express x16 (Gen 5.x) slots

2

Audio output channels

7.1 channels

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

Supported storage drive types

HDD & SSD

Supported memory clock speeds

9066 MHz

Motherboard form factor

ATX

Component for

PC

Compatible processor series

Intel Core Ultra (Series 2)

Processor socket

LGA 1851 (Socket V1)

Supported processor sockets

LGA 1851

Supported memory clock speed (max)

9066 MHz

Unbuffered memory

Yes

RAID levels

0/1/10/5

RAID support

Yes

Supported storage drive interfaces

M.2,SATA III

CPU fan connector

Yes

Front panel audio connector

Yes

Front panel connector

Yes

Number of chassis fan connectors

5

Number of CPU fan connectors

2

Number of EPS power connectors (8-pin)

2

Number of RGB LED pin headers

3

RGB LED pin header

Yes

TPM connector

Yes

USB 2.0 connectors

1

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

WiFi-AP antenna jack

2

Ethernet interface type

10 Gigabit Ethernet/2.5 Gigabit Ethernet

Motherboard chipset family

Intel

Power source type

ATX

1st M.2 highest PCI Express generation

5.0

1st M.2 largest key size

22110

Number of M.2 (M) slots

5

PCI Express x16 (Gen 4.x) slots

1

BIOS memory size

256 Mbit

BIOS type

UEFI AMI

Antenna included

Yes

12V power connector

Yes

Number of water pump connectors

1

2nd M.2 highest PCI Express generation

4.0

2nd M.2 largest key size

2280

3rd M.2 highest PCI Express generation

4.0

3rd M.2 largest key size

2280

Clear CMOS button

Yes

Chassis intrusion connector

Yes

Number of COM connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Number of temperature sensor headers

1

4th M.2 highest PCI Express generation

4.0

4th M.2 largest key size

2280

5th M.2 highest PCI Express generation

4.0

5th M.2 largest key size

2280

Thunderbolt ports quantity

3

ECC сompatibility

Non-ECC
