MSI Mainboard AMD A520 SAM4 MicroATX 1xPCI-Express 3.0 1x 1xPCI-Express 3.0 16x 1xM.2 Memory DDR4 Memory slots 2 1xDVI 1xHDMI 2

Muud funktsioonid

Depth

200 mm

Height

60 mm

Width

236 mm

Unit Box Width

0.26

Unit Box Length

0.26

Unit Box Height

0.06

Category Code

MBA

Unit Calculated Volume

0.004491 cubm

Unit Calculated Weight

0.838 kg

Units per Shipping Box

20

Summary

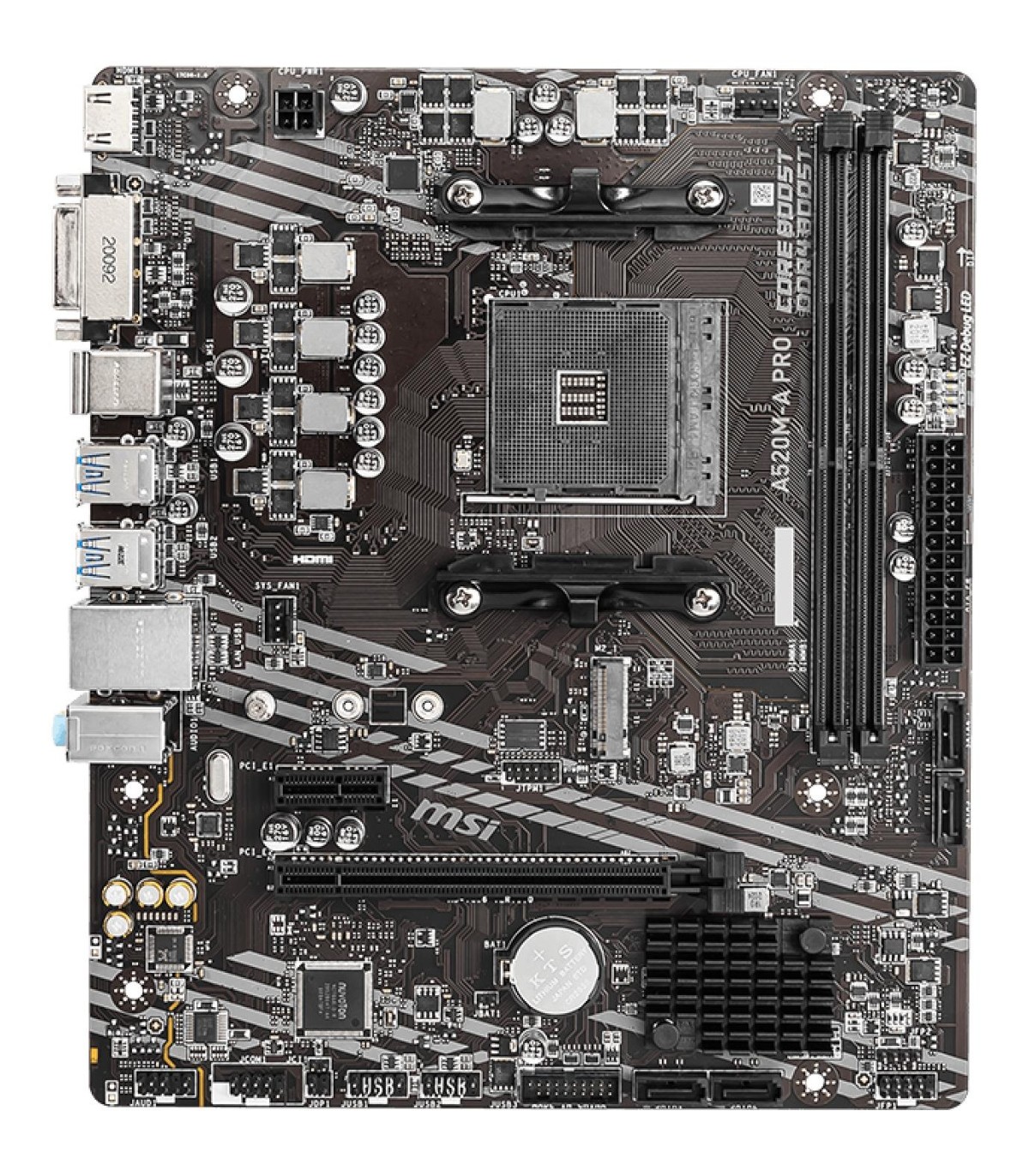

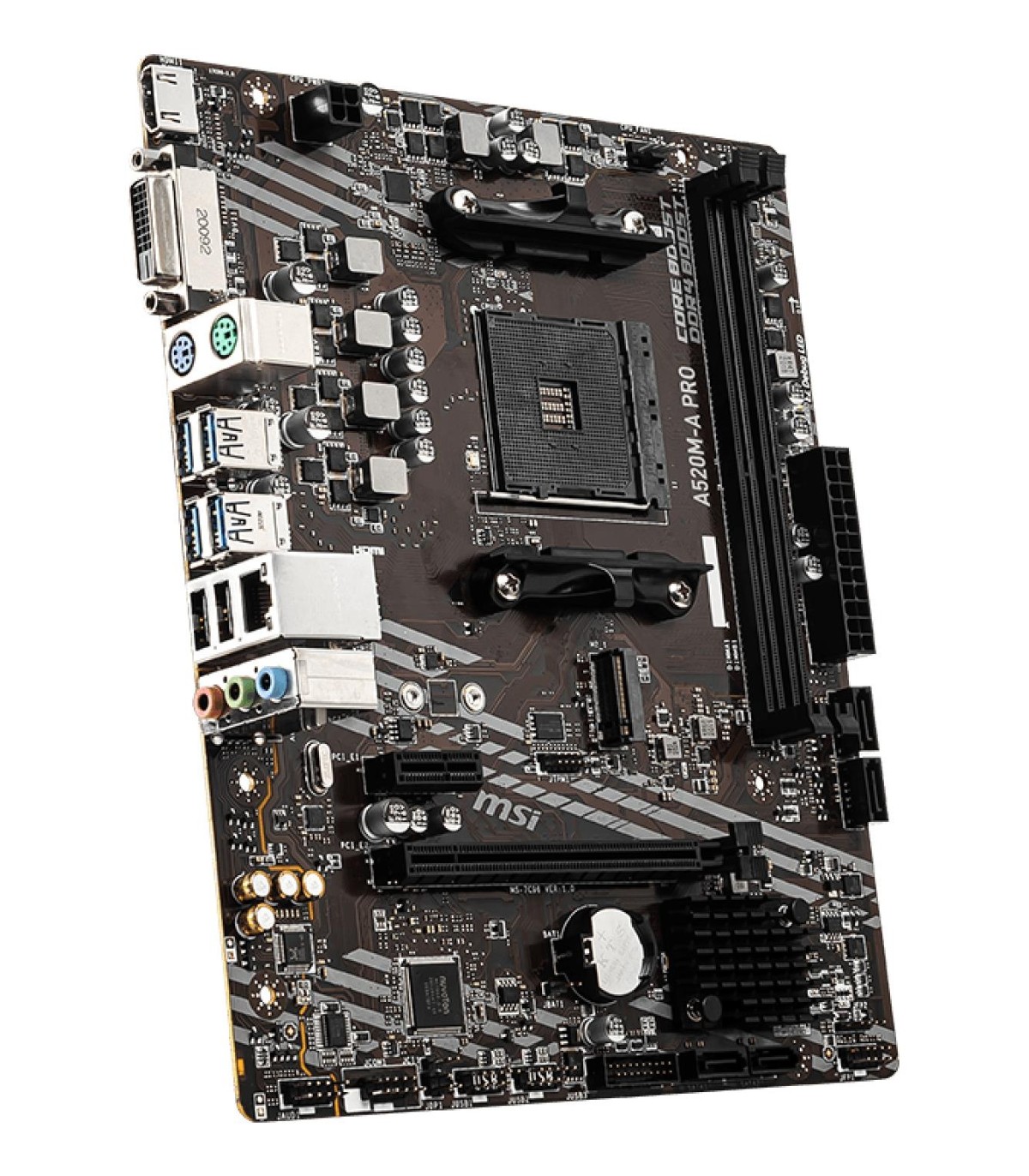

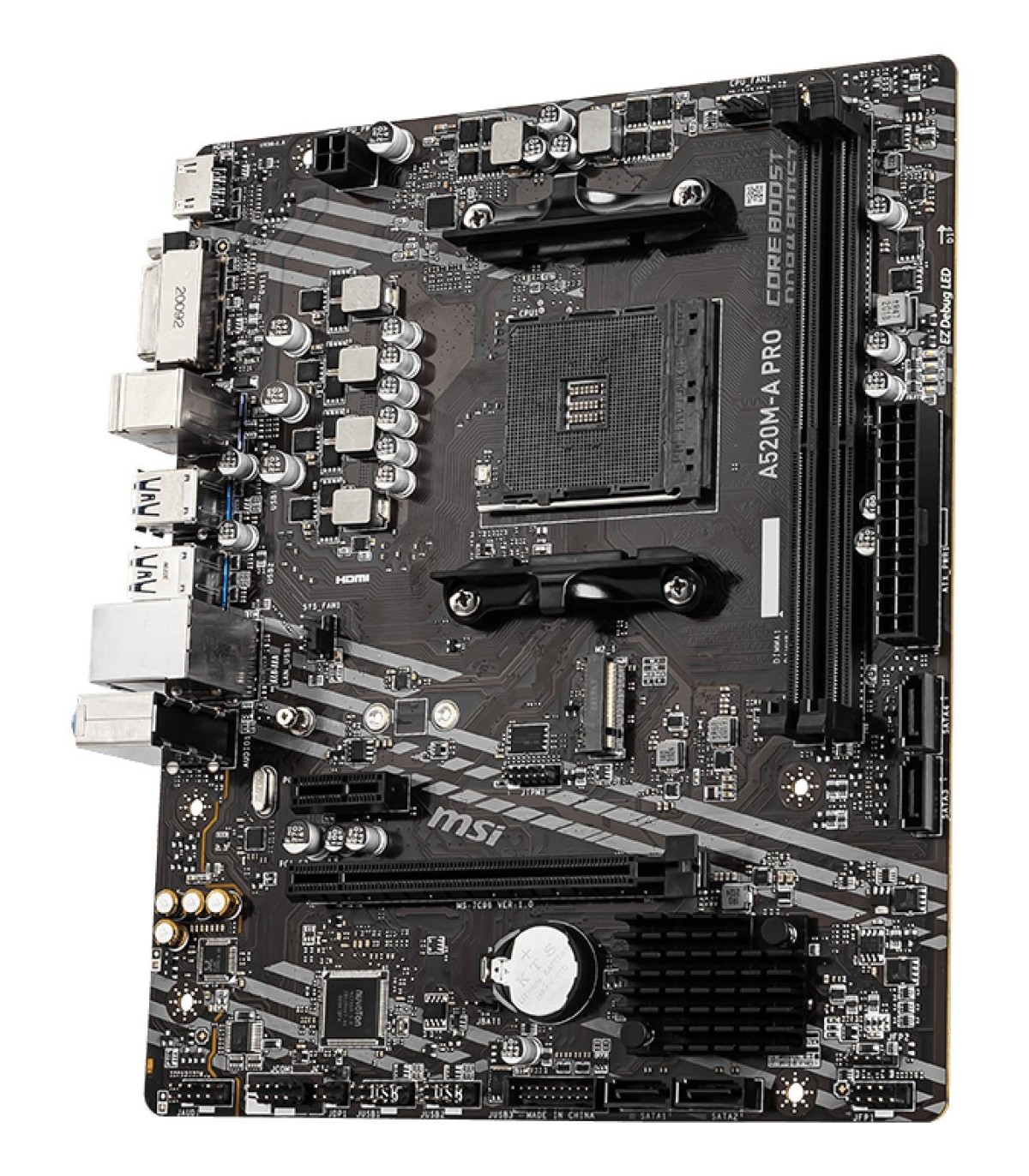

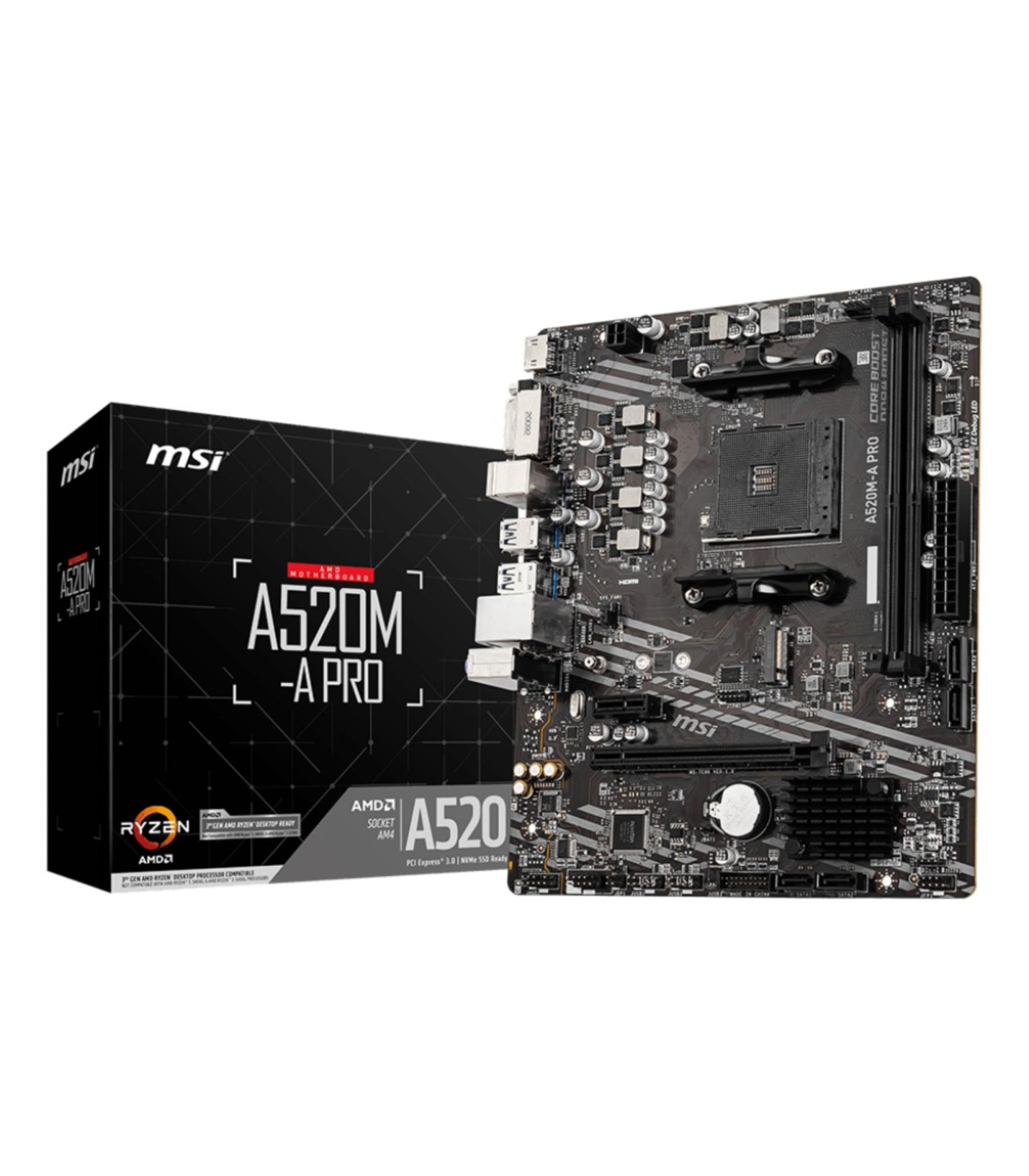

MSI A520M-A PRO. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces

Product colour

Black

HDMI ports quantity

1

Weight

698 g

Headphone outputs

1

Wi-Fi

No

Harmonized System (HS) code

84733020

Microphone in

Yes

Ethernet LAN (RJ-45) ports

1

Ethernet LAN

Yes

Maximum resolution

4096 x 2160 pixels

DVI-D ports quantity

1

USB 2.0 ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

Number of HDDs supported

5

ATX Power connector (24-pin)

Yes

Processor manufacturer

AMD

Maximum internal memory

64 GB

Memory channels

Dual-channel

On-board graphics card

No

Audio chip

Realtek ALC892

Motherboard chipset

AMD A520

LAN controller

Realtek RTL8111H

Number of SATA III connectors

4

Audio output channels

7.1 channels

PCI Express x1 (Gen 3.x) slots

1

PCI Express x16 (Gen 3.x) slots

1

Memory slots type

DIMM

Number of memory slots

2

Supported memory types

DDR4-SDRAM

Supported storage drive types

HDD & SSD

Supported memory clock speeds

1866/2133/2400/2667/2800/2933/3000/3066/3200/3466/3600/3733/3866/4000/4133/4266/4400/4600 MHz

Motherboard form factor

Micro ATX

Component for

PC

Compatible processor series

AMD Ryzen 3000 Series

Processor socket

Socket AM4

Unbuffered memory

Yes

RAID levels

0/1/10

RAID support

Yes

Supported storage drive interfaces

PCI Express 3.0,SATA

CPU fan connector

Yes

Front panel audio connector

Yes

Front panel connector

Yes

Number of chassis fan connectors

2

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Ethernet interface type

Gigabit Ethernet

Motherboard chipset family

AMD

Number of M.2 (M) slots

1

Maximum number of SMP processors

1

Chassis intrusion connector

Yes

Number of displays supported

2

Number of mounting holes

8

ECC сompatibility

ECC & Non-ECC
