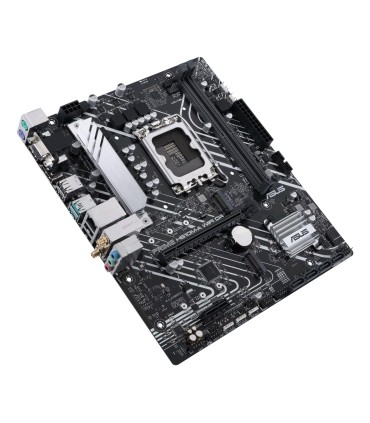

ASUS Mainboard Intel H610 LGA1700 Micro-ATX Memory DDR4 Memory slots 2 1xPCI-Express 3.0 1x 1xPCI-Express 4.0 16x 2xM.2 1x15pin

Andmeside

Bluetooth

Yes

Muud funktsioonid

Depth

211 mm

Height

58 mm

Width

244 mm

Unit Box Width

0.265

Unit Box Length

0.27

Unit Box Height

0.055

Category Code

MBI

Model

PRIME H610M-A WIFI D4

Bluetooth version

5.0

Unit Calculated Volume

0.003935 cubm

Unit Calculated Weight

1.01 kg

Units per Shipping Box

1

Summary

ASUS PRIME H610M-A WIFI D4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM,

DisplayPort version

1.4

DisplayPorts quantity

1

HDMI ports quantity

1

HDMI version

2.1

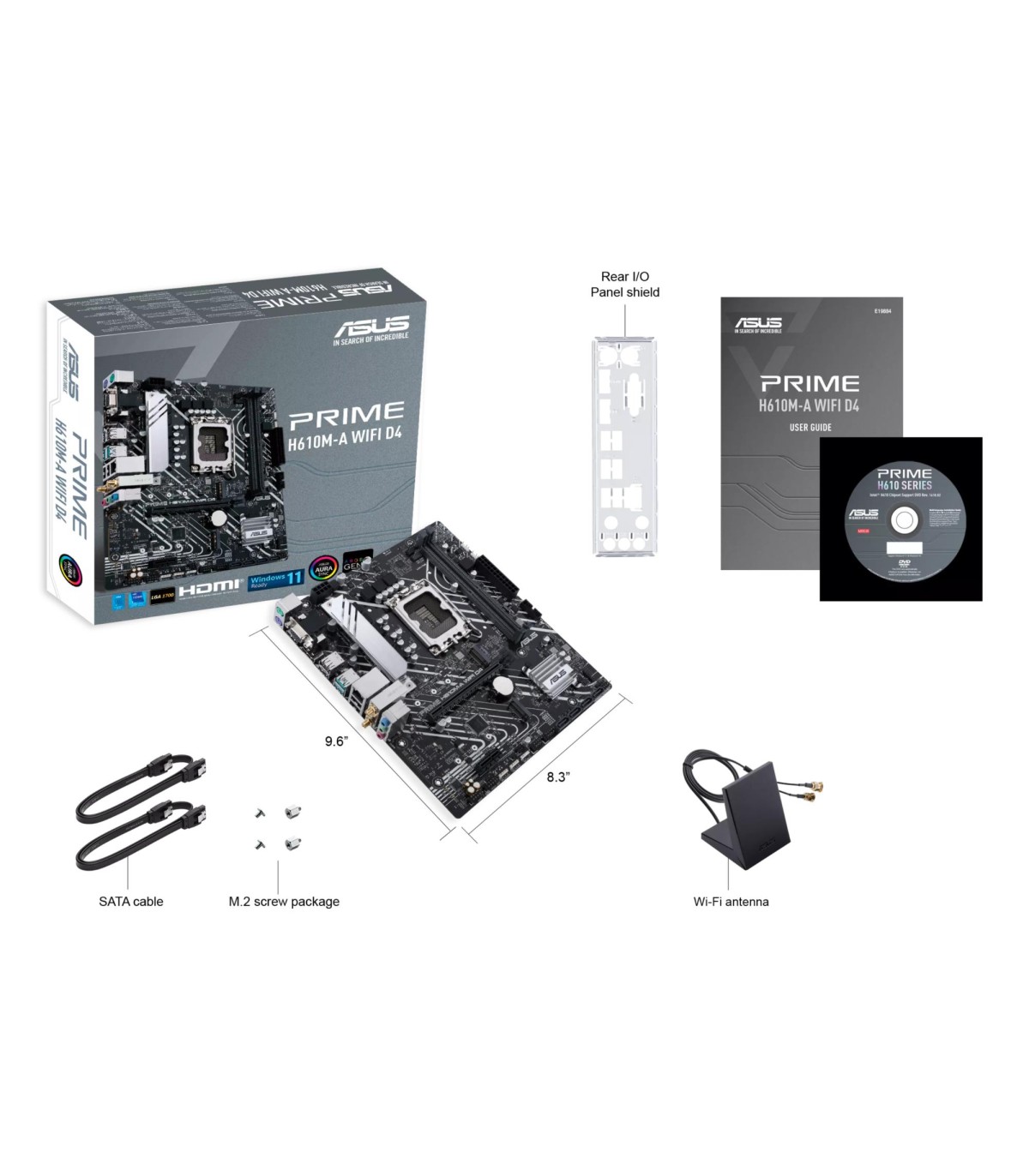

Cables included

SATA

VGA (D-Sub) ports quantity

1

Weight

815 g

Headphone outputs

1

Wi-Fi

Yes

Harmonized System (HS) code

84733020

Windows operating systems supported

Windows 10 x64/Windows 11 x64

Microphone in

Yes

Ethernet LAN (RJ-45) ports

1

Ethernet LAN

Yes

Wi-Fi standards

802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)

Drivers included

Yes

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

ATX Power connector (24-pin)

Yes

EPS power connector (8-pin)

Yes

Processor manufacturer

Intel

Maximum internal memory

64 GB

Memory channels

Dual-channel

Top Wi-Fi standard

Wi-Fi 5 (802.11ac)

Motherboard chipset

Intel H610

Number of SATA III connectors

4

Audio output channels

7.1 channels

PS/2 ports quantity

2

PCI Express x1 (Gen 3.x) slots

1

Memory slots type

DIMM

Number of memory slots

2

Supported memory types

DDR4-SDRAM

Supported storage drive types

HDD & SSD

Supported memory clock speeds

2133/2400/2666/2800/2933/3000/3200 MHz

Motherboard form factor

Micro ATX

Component for

PC

Compatible processor series

Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium®/Intel® Pentium® Gold

Processor socket

LGA 1700

Unbuffered memory

Yes

Supported storage drive interfaces

M.2,SATA

CPU fan connector

Yes

Front panel audio connector

Yes

Number of chassis fan connectors

2

RGB LED pin header

Yes

TPM connector

Yes

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Ethernet interface type

Gigabit Ethernet

Motherboard chipset family

Intel

Number of M.2 (M) slots

2

PCI Express x16 (Gen 4.x) slots

1

BIOS memory size

128 Mbit

BIOS type

UEFI AMI

12V power connector

Yes

Maximum number of SMP processors

1

Number of COM connectors

1

S/PDIF out connector

Yes

Number of displays supported

3

ECC сompatibility

Non-ECC
