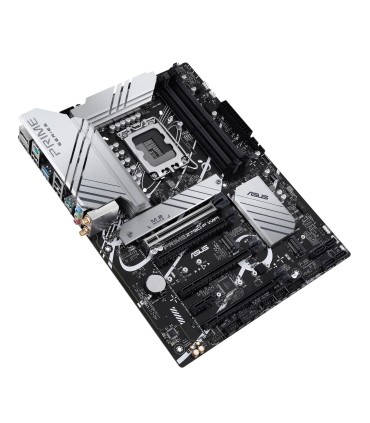

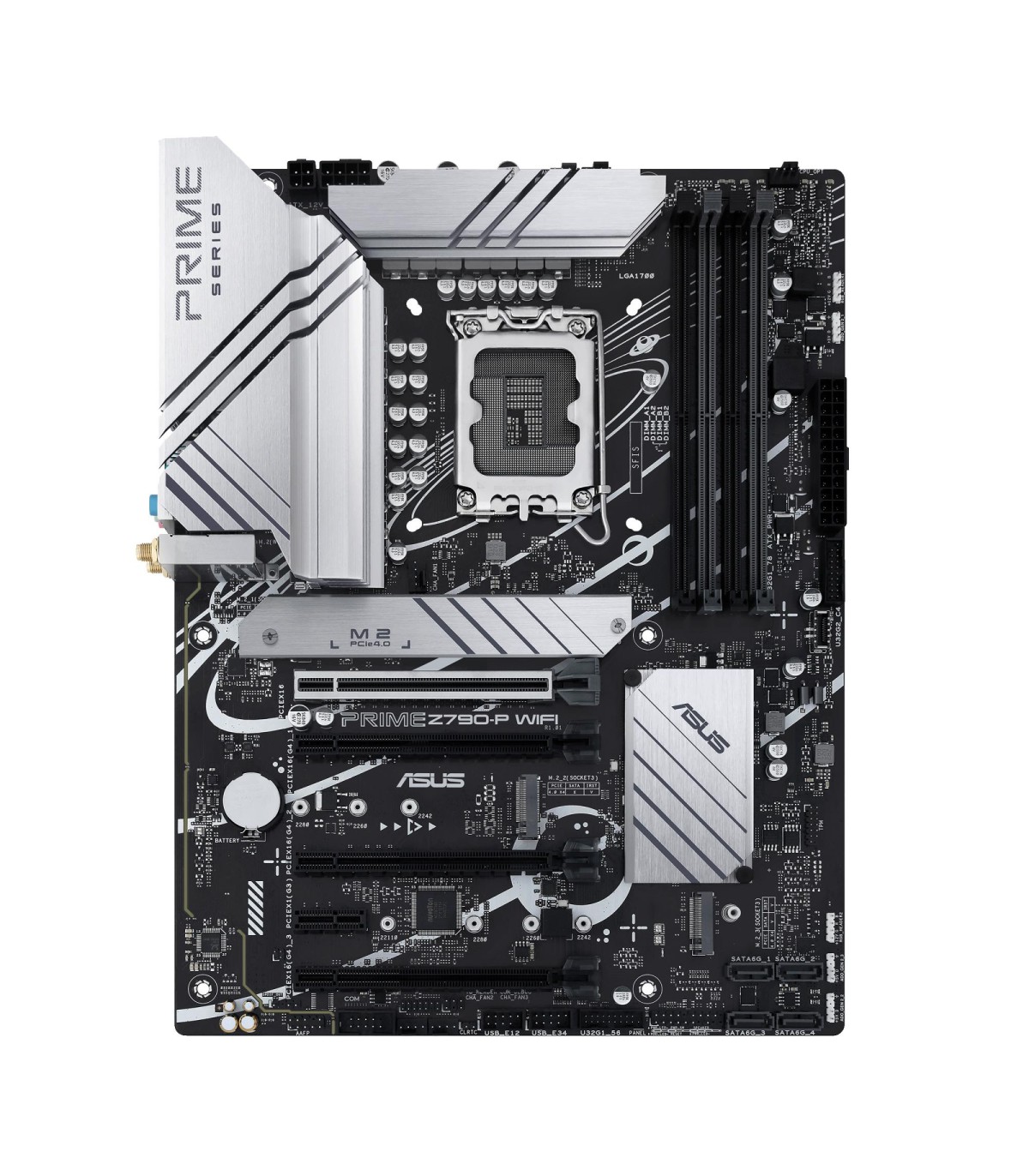

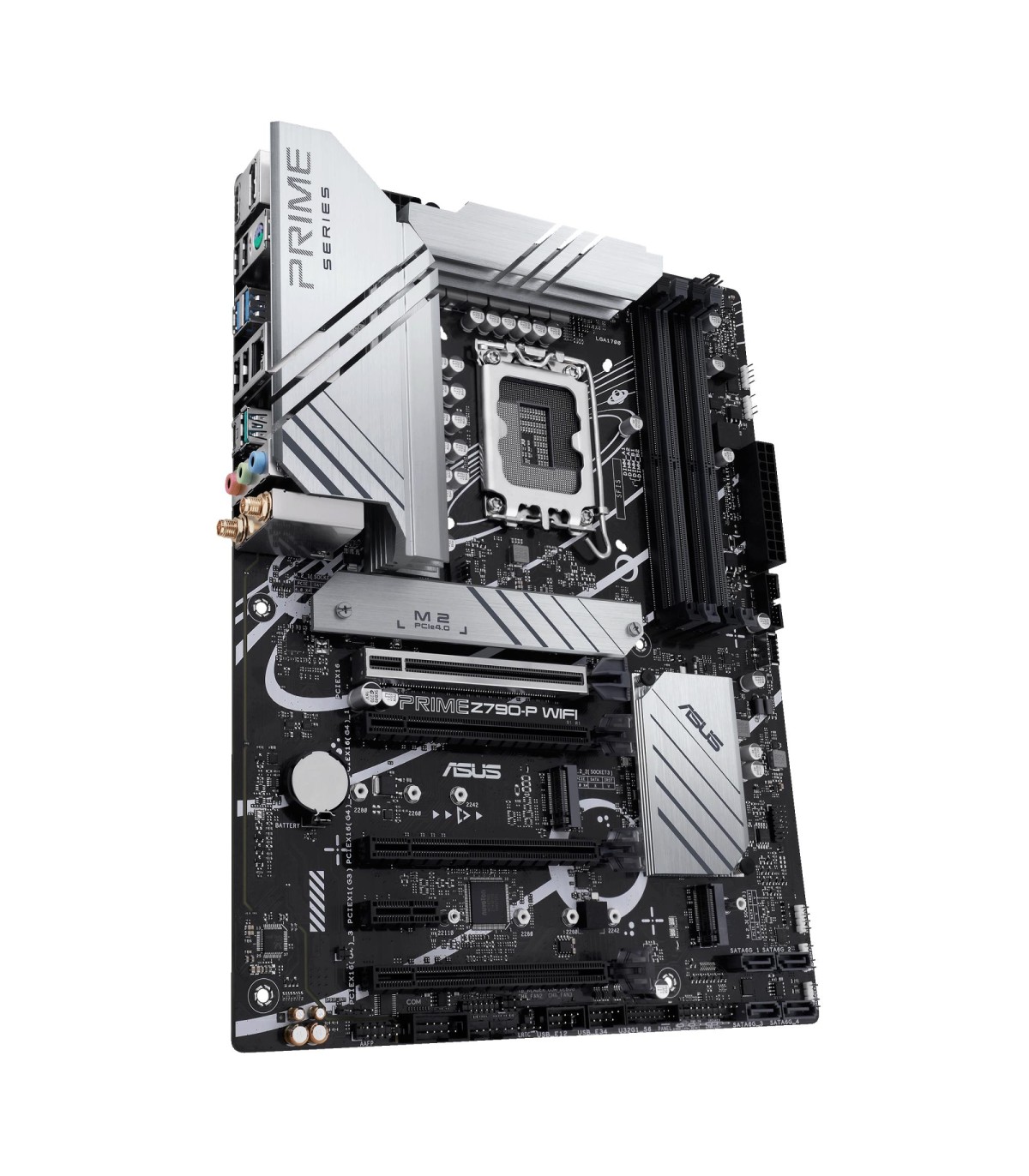

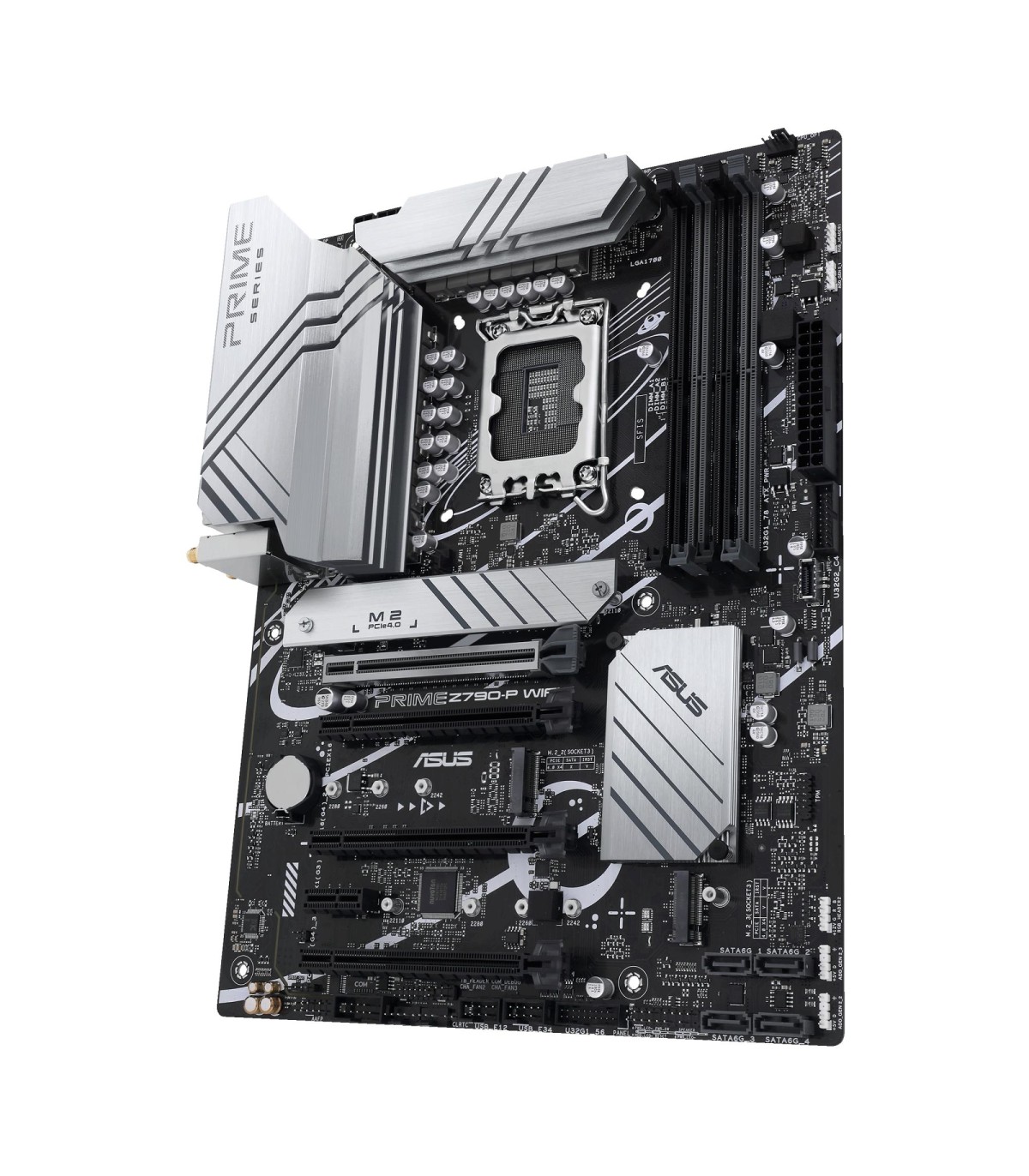

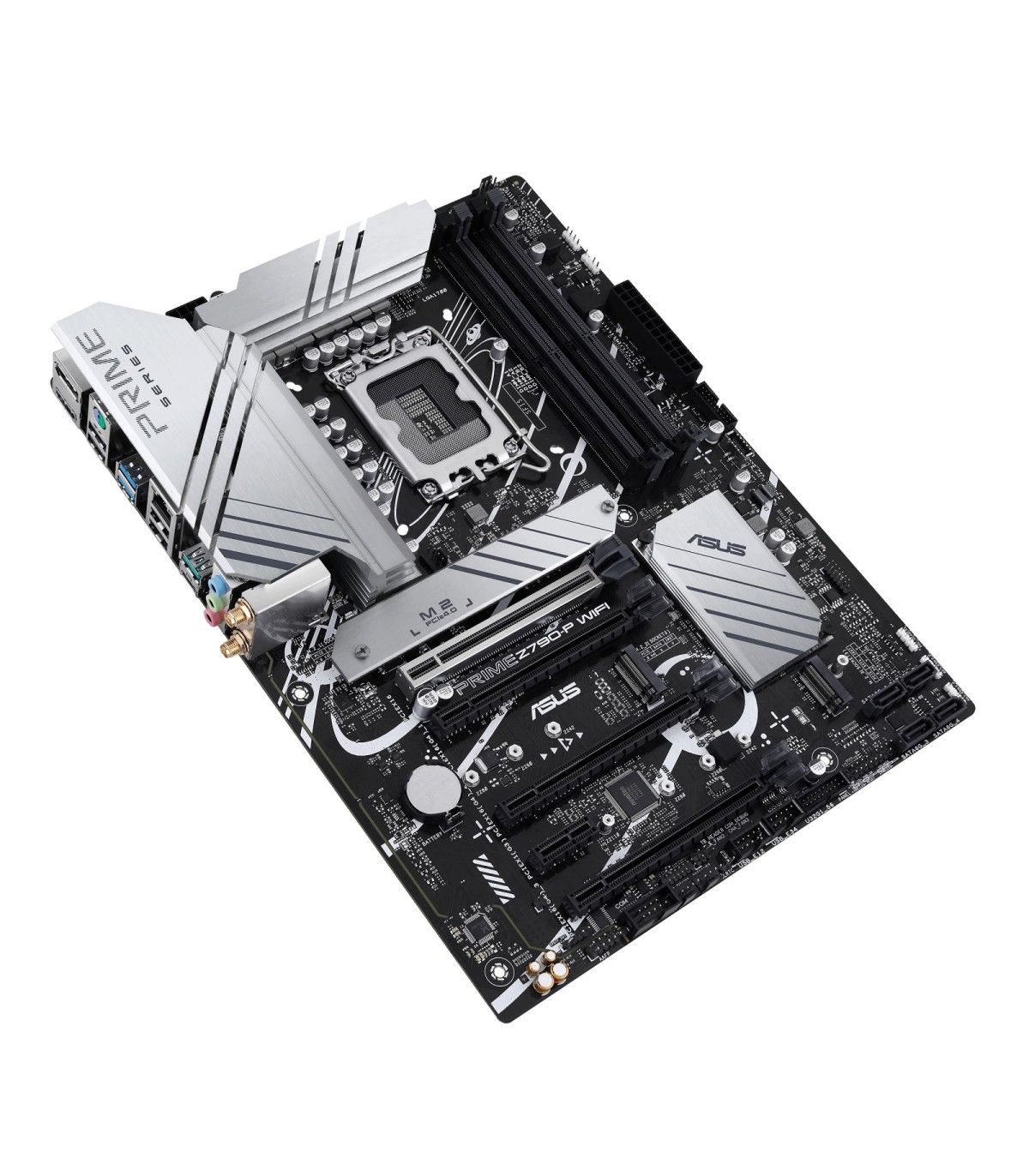

ASUS Mainboard Intel Z790 LGA1700 ATX Memory DDR5 Memory slots 4 1xPCI-Express 3.0 1x 3xPCI-Express 4.0 16x 1xPCI-Express 5.0 1

Andmeside

Bluetooth

Yes

Muud funktsioonid

Depth

234 mm

Height

40 mm

Width

305 mm

Unit Box Width

0.275

Unit Box Length

0.345

Unit Box Height

0.07

Category Code

MBI

Model

PRIME Z790-P WIFI

Bluetooth version

5.2

Unit Calculated Volume

0.007994 cubm

Unit Calculated Weight

1.85 kg

Units per Shipping Box

5

Summary

ASUS PRIME Z790-P WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maxi

Product colour

Aluminium/Black

DisplayPorts quantity

1

HDMI ports quantity

1

Package depth

273 mm

Package height

68 mm

Package weight

1682 g

Package width

338 mm

Cables included

SATA

Weight

1031 g

Headphone outputs

1

Wi-Fi

Yes

Windows operating systems supported

Windows 10 x64/Windows 11

Microphone in

Yes

Ethernet LAN (RJ-45) ports

1

Ethernet LAN

Yes

Wi-Fi standards

802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)

Parallel processing technology support

Not supported

Drivers included

Yes

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

USB 3.2 Gen 2x2 Type-C ports quantity

1

Peripheral (Molex) power connectors (4-pin)

1

ATX Power connector (24-pin)

Yes

EPS power connector (8-pin)

Yes

Processor manufacturer

Intel

Maximum internal memory

128 GB

Memory channels

Dual-channel

On-board graphics card

No

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

Motherboard chipset

Intel Z790

Number of SATA III connectors

4

Line-in

Yes

PCI Express x16 (Gen 5.x) slots

1

Audio output channels

7.1 channels

PS/2 ports quantity

1

PCI Express x1 (Gen 3.x) slots

1

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

Supported storage drive types

HDD & SSD

Supported memory clock speeds

4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200 MHz

Motherboard form factor

ATX

Component for

PC

Compatible processor series

Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold

Processor socket

LGA 1700

Supported processor sockets

LGA 1700

Supported memory clock speed (max)

7200 MHz

Unbuffered memory

Yes

RAID levels

0/1/10/5

RAID support

Yes

Supported storage drive interfaces

M.2,SATA III

CPU fan connector

Yes

Front panel audio connector

Yes

Number of chassis fan connectors

3

RGB LED pin header

Yes

TPM connector

Yes

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

WiFi-AP antenna jack

1

Ethernet interface type

2.5 Gigabit Ethernet

Motherboard chipset family

Intel

Power source type

ATX

Number of M.2 (M) slots

3

PCI Express x16 (Gen 4.x) slots

3

BIOS memory size

192 Mbit

BIOS type

UEFI AMI

12V power connector

Yes

Clear CMOS button

Yes

Number of COM connectors

1

S/PDIF out connector

Yes

Thunderbolt headers

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

ECC сompatibility

Non-ECC
