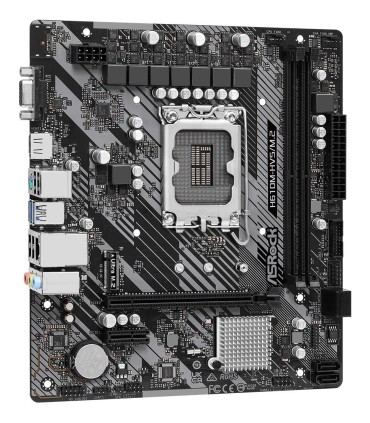

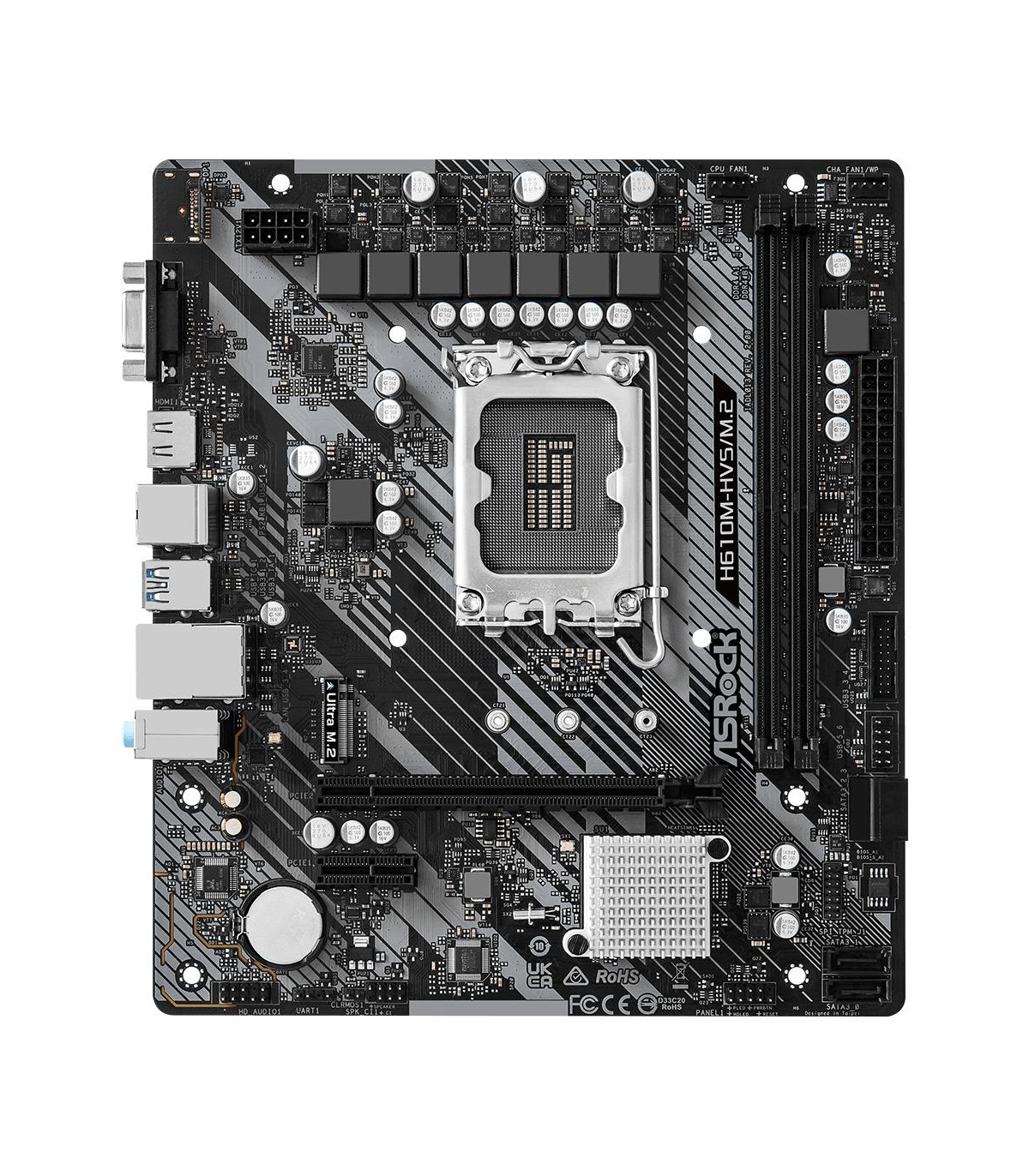

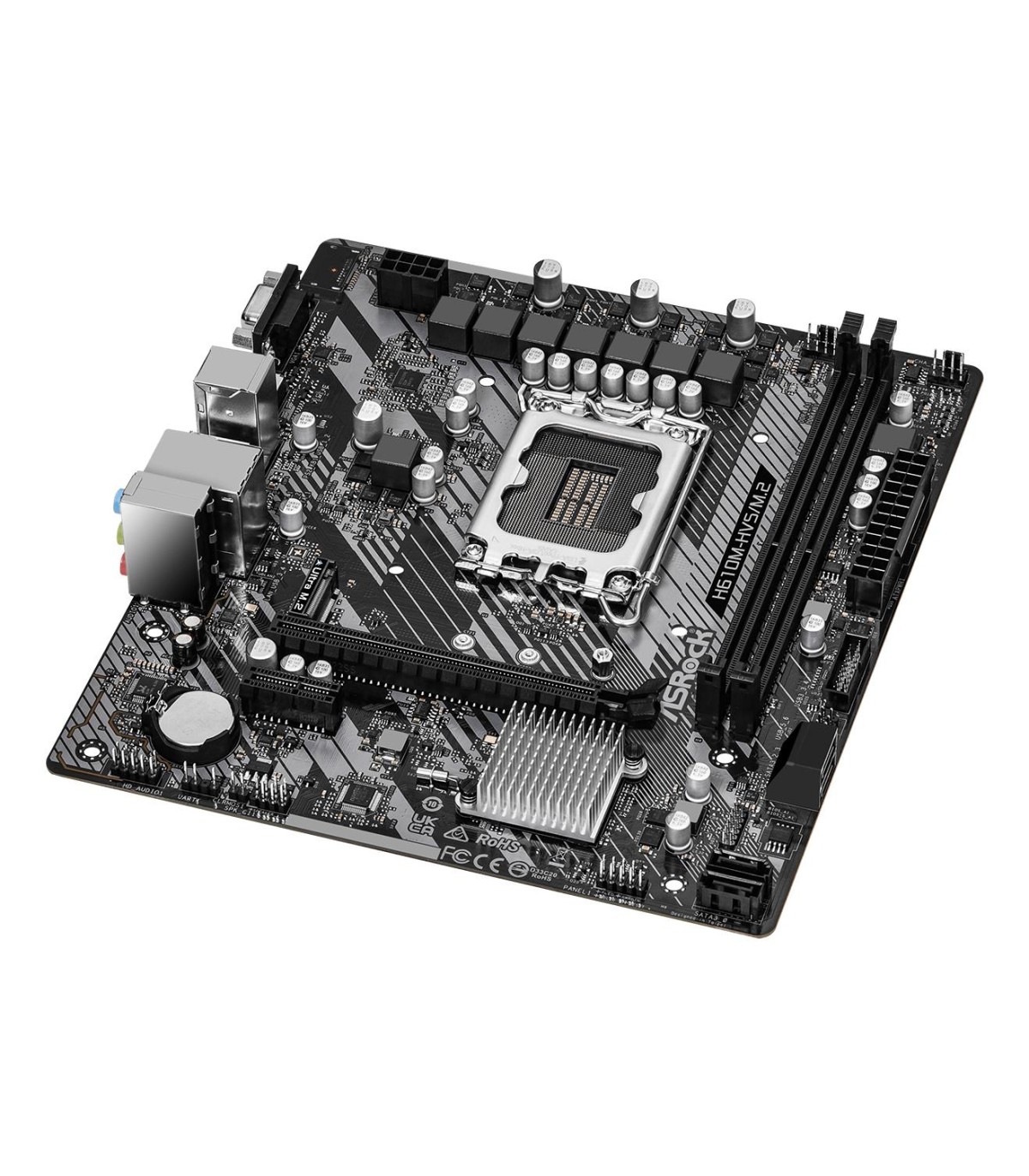

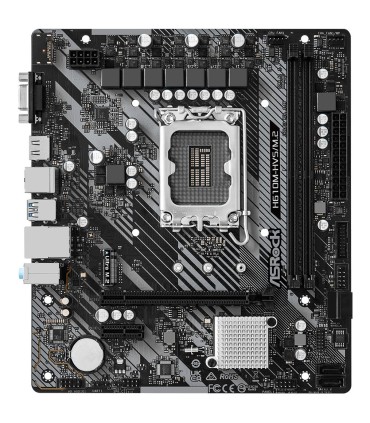

ASROCK Mainboard Intel H610 LGA1700 Micro-ATX Memory DDR4 Memory slots 2 1xPCI-Express 3.0 1x 1xPCI-Express 4.0 16x 1xM.2 1x15p

Muud funktsioonid

Depth

188 mm

Width

223 mm

Unit Box Width

0.24

Unit Box Length

0.275

Unit Box Height

0.06

Category Code

MBI

Model

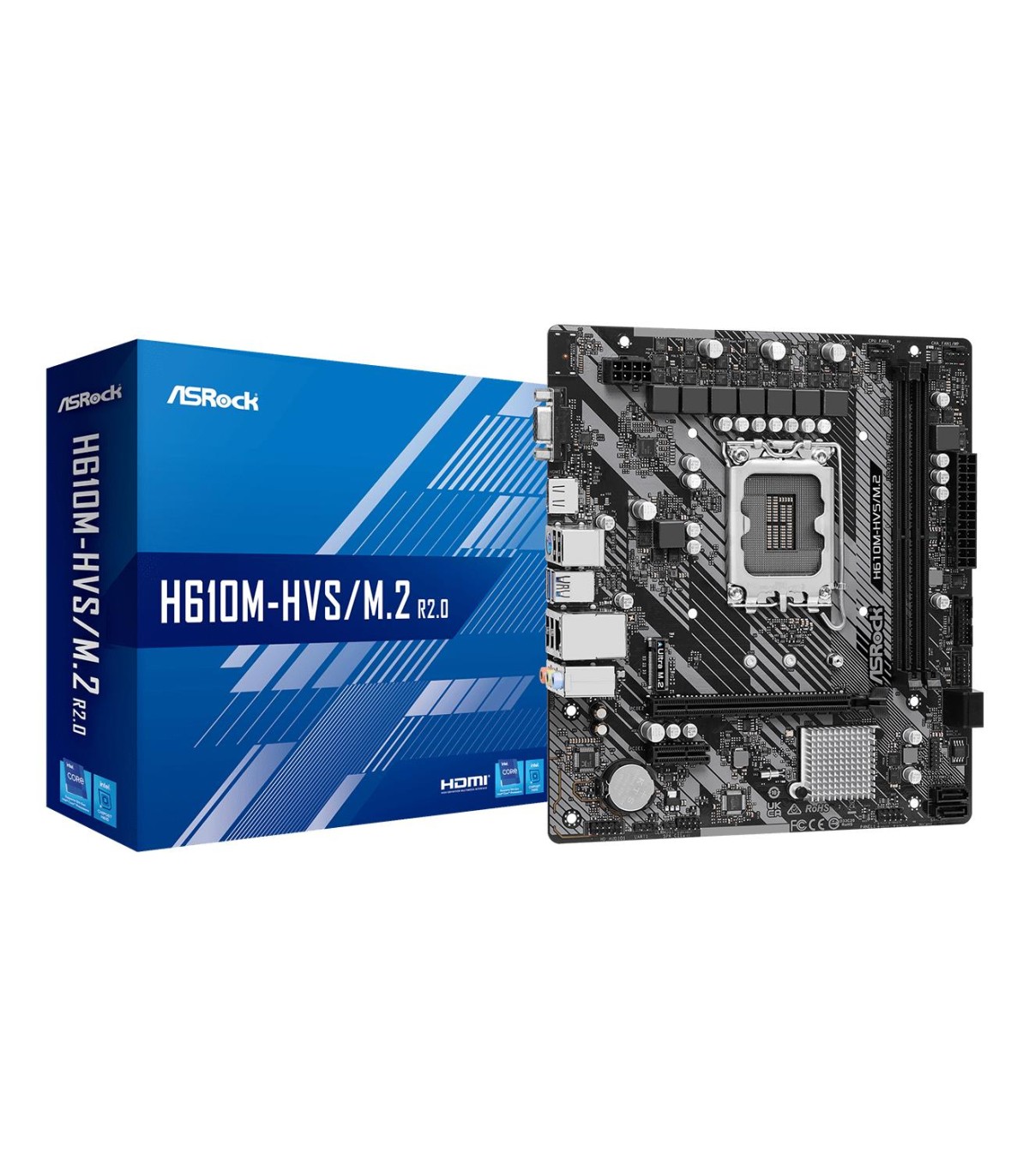

H610M-HVS/M.2 R2.0

Unit Calculated Volume

0.00396 cubm

Unit Calculated Weight

0.83 kg

Units per Shipping Box

1

Summary

Asrock H610M-HVS/M.2 R2.0. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots

HDCP

Yes

HDMI ports quantity

1

Cables included

SATA

VGA (D-Sub) ports quantity

1

Certification

- FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required)

Headphone outputs

1

Wi-Fi

No

Windows operating systems supported

Windows 10 Education x64/Windows 11 x64

Microphone in

Yes

Ethernet LAN (RJ-45) ports

1

Ethernet LAN

Yes

Maximum resolution

4096 x 2160 pixels

Parallel processing technology support

Not supported

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

ATX Power connector (24-pin)

Yes

EPS power connector (8-pin)

Yes

Processor manufacturer

Intel

Maximum internal memory

64 GB

Memory channels

Dual-channel

Audio chip

Realtek ALC897

Motherboard chipset

Intel H610

LAN controller

Realtek RTL8111H

Line-in

Yes

Audio output channels

7.1 channels

PS/2 ports quantity

1

PCI Express x1 (Gen 3.x) slots

1

Memory slots type

DIMM

Number of memory slots

2

Supported memory types

DDR4-SDRAM

Supported storage drive types

HDD & SSD

Supported memory clock speeds

3200 MHz

Motherboard form factor

Micro ATX

Component for

PC

Compatible processor series

Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7

Processor socket

LGA 1700

Unbuffered memory

Yes

Supported storage drive interfaces

M.2,SATA III

CPU fan connector

Yes

Front panel connector

Yes

TPM connector

Yes

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Ethernet interface type

Gigabit Ethernet

Motherboard chipset family

Intel

PC health monitoring

CPU/Fan/Voltage/Water cooling

Number of M.2 (M) slots

1

PCI Express x16 (Gen 4.x) slots

1

BIOS memory size

128 Mbit

BIOS type

UEFI AMI

System Management BIOS (SMBIOS) version

2.7

Maximum number of SMP processors

1

Chassis intrusion connector

Yes

Wake-on-LAN ready

Yes

ECC сompatibility

Non-ECC
