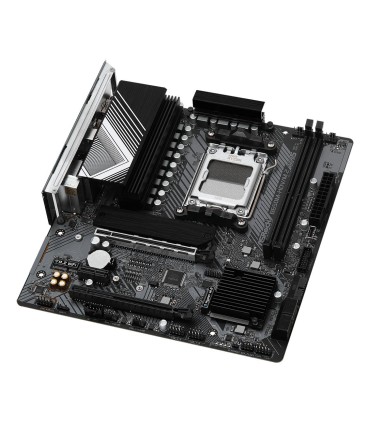

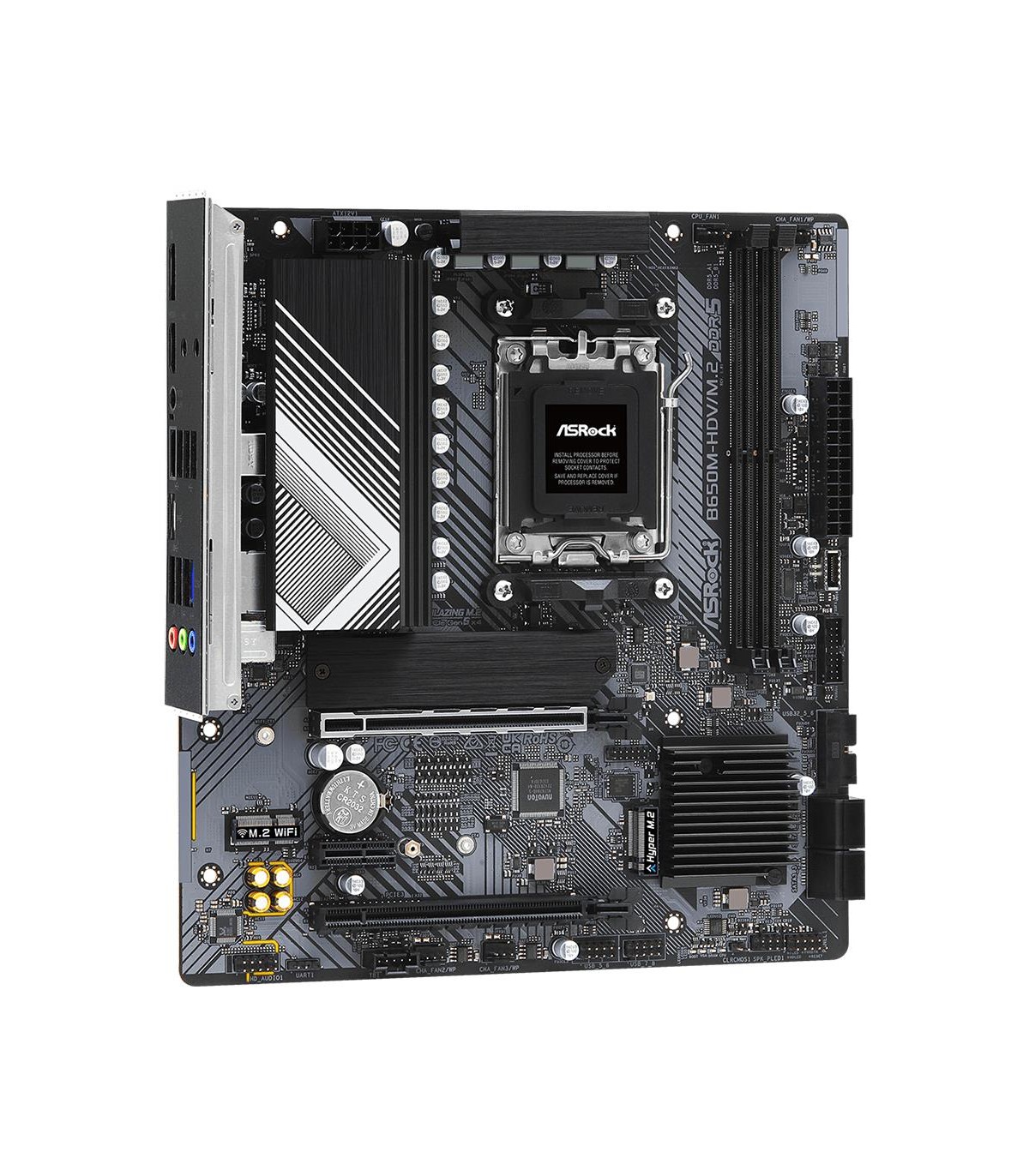

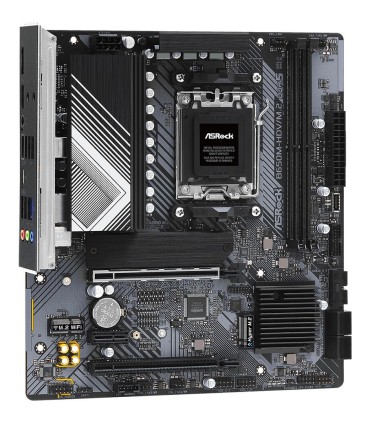

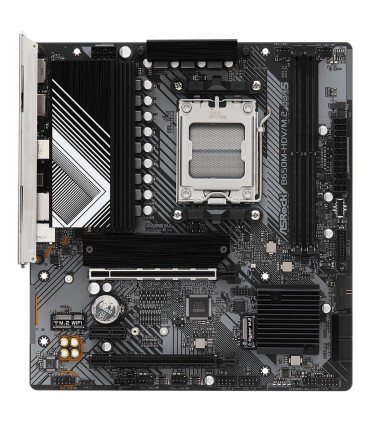

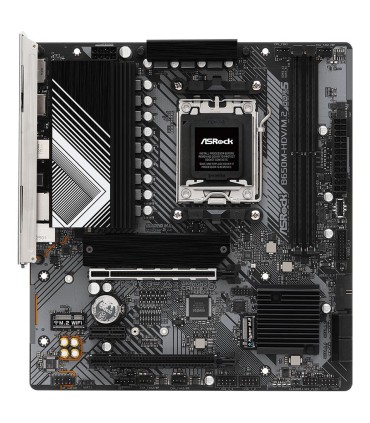

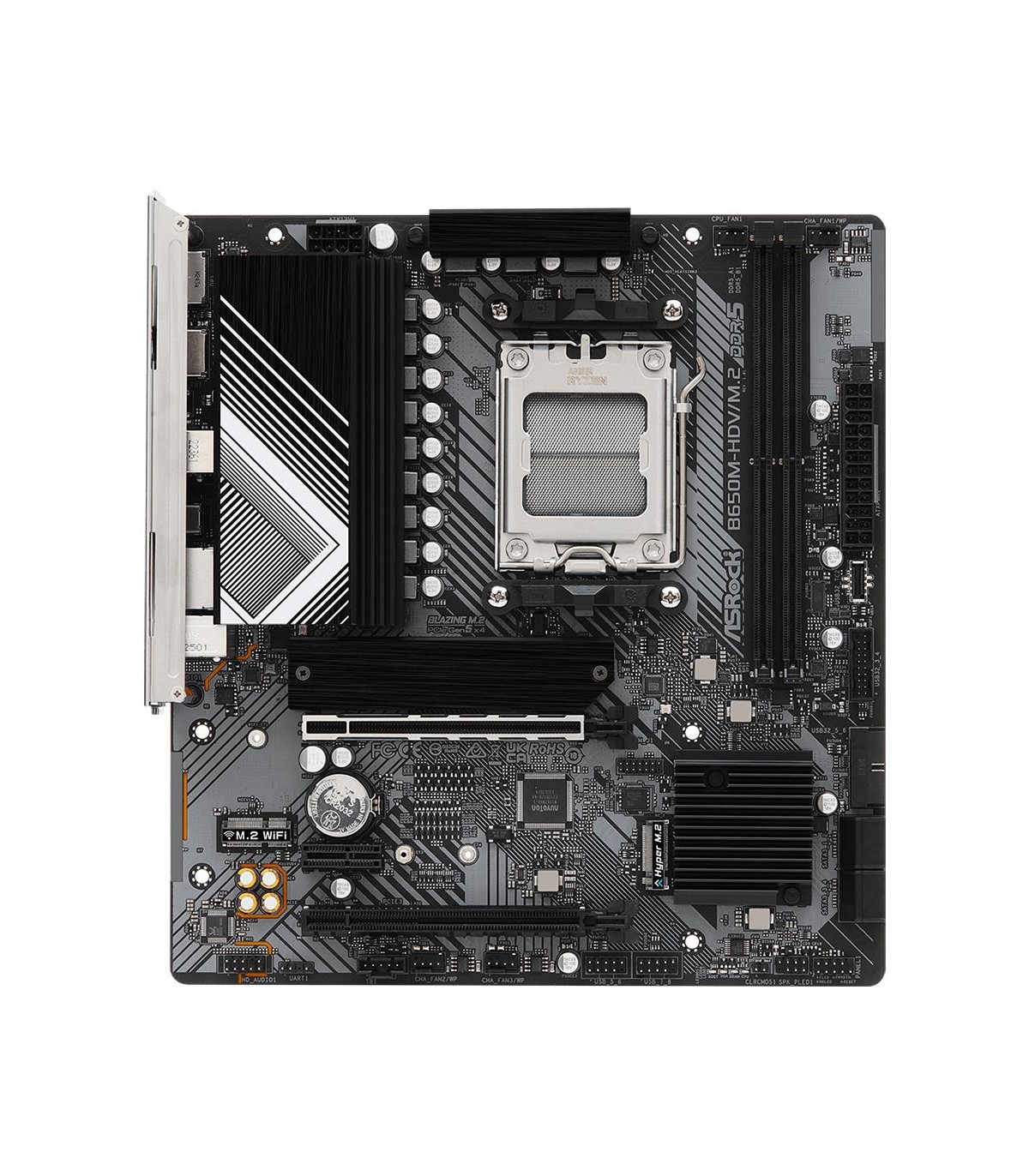

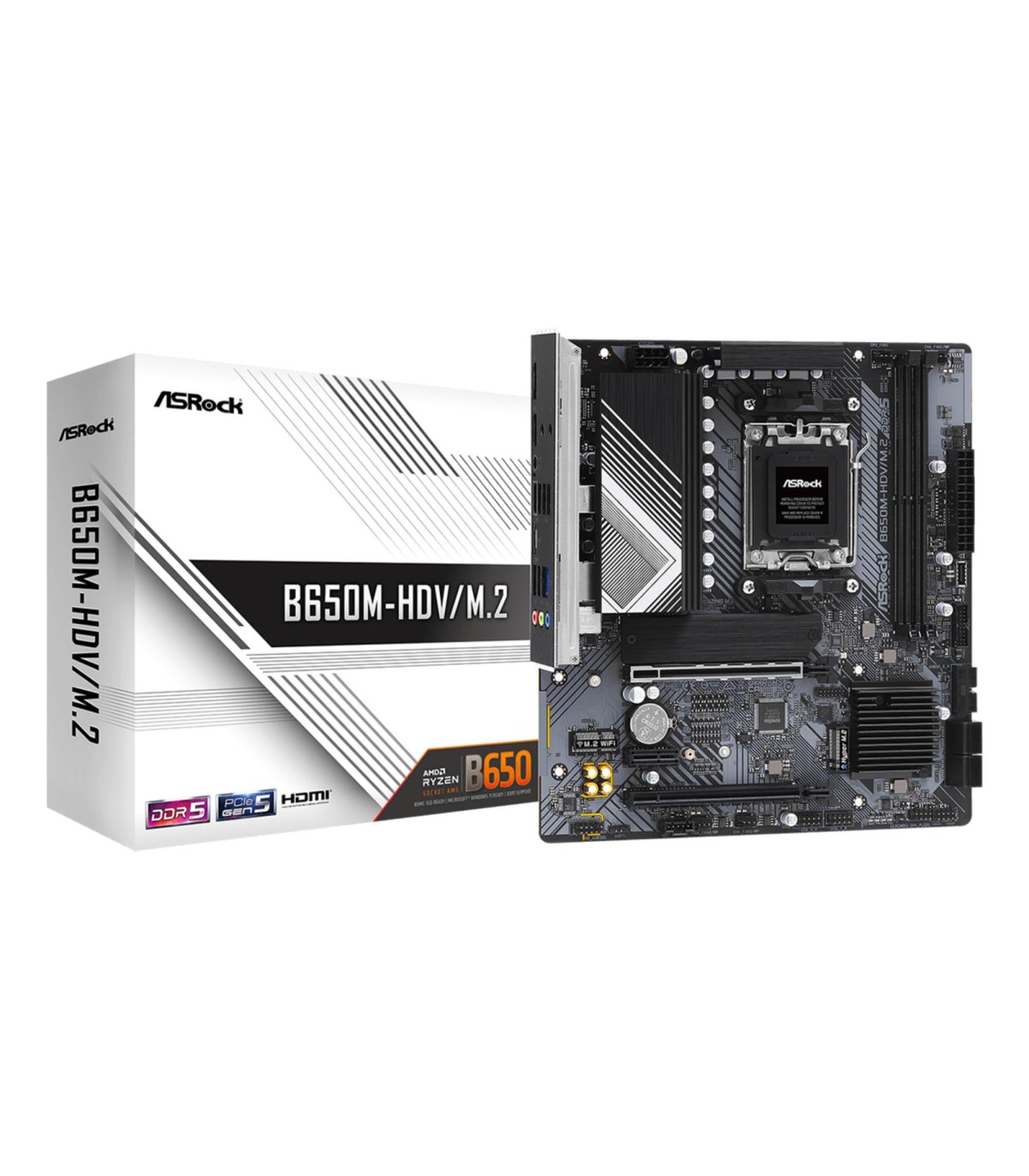

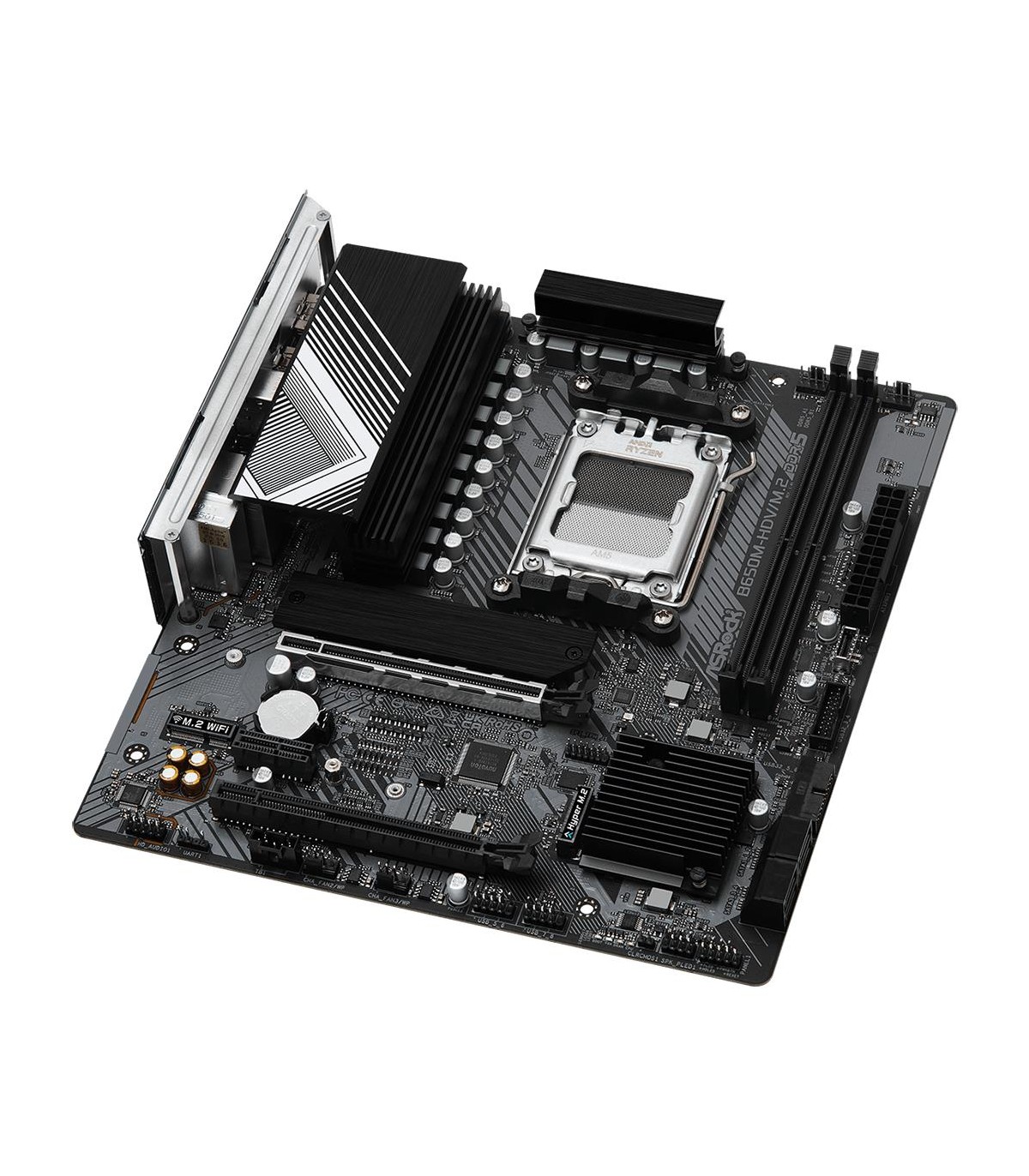

ASROCK Mainboard AMD B650 SAM5 Micro-ATX Memory DDR5 Memory slots 2 1xPCI-Express 4.0 1x 2xPCI-Express 4.0 16x 1xM.2 1xHDMI 1xD

Muud funktsioonid

Depth

226 mm

Width

244 mm

Unit Box Width

0.26

Unit Box Length

0.28

Unit Box Height

0.06

Category Code

MBA

Model

B650M-HDV/M.2

Unit Calculated Volume

0.00529 cubm

Unit Calculated Weight

1.33 kg

Units per Shipping Box

10

Summary

Asrock B650M-HDV/M.2. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen™ 7. Supported memory types: DDR5-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces:

DisplayPort version

1.4

DisplayPorts quantity

1

HDMI ports quantity

1

Wi-Fi

No

Windows operating systems supported

Windows 10 x64/Windows 11 x64

Microphone in

Yes

Ethernet LAN (RJ-45) ports

1

Ethernet LAN

Yes

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

ATX Power connector (24-pin)

Yes

EPS power connector (8-pin)

Yes

Processor manufacturer

AMD

Maximum internal memory

64 GB

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

Audio chip

Realtek ALC897

Motherboard chipset

AMD B650

LAN controller

Realtek RTL8125-BG

Number of SATA III connectors

4

Line-in

Yes

Audio output channels

7.1 channels

Memory slots type

DIMM

Number of memory slots

2

Supported memory types

DDR5-SDRAM

Supported storage drive types

HDD & SSD

Motherboard form factor

Micro ATX

Component for

PC

Compatible processor series

AMD Ryzen™ 7

Processor socket

Socket AM5

Unbuffered memory

Yes

RAID levels

0/1/10

RAID support

Yes

Supported storage drive interfaces

M.2,SATA III

CPU fan connector

Yes

Front panel audio connector

Yes

TPM connector

Yes

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Ethernet interface type

2.5 Gigabit Ethernet

Motherboard chipset family

AMD

Number of M.2 (M) slots

1

PCI Express x16 (Gen 4.x) slots

1

BIOS memory size

256 Mbit

BIOS type

EFI AMI

Thunderbolt headers

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

PCI Express x1 (Gen 4.x) slots

1

ECC сompatibility

Non-ECC
