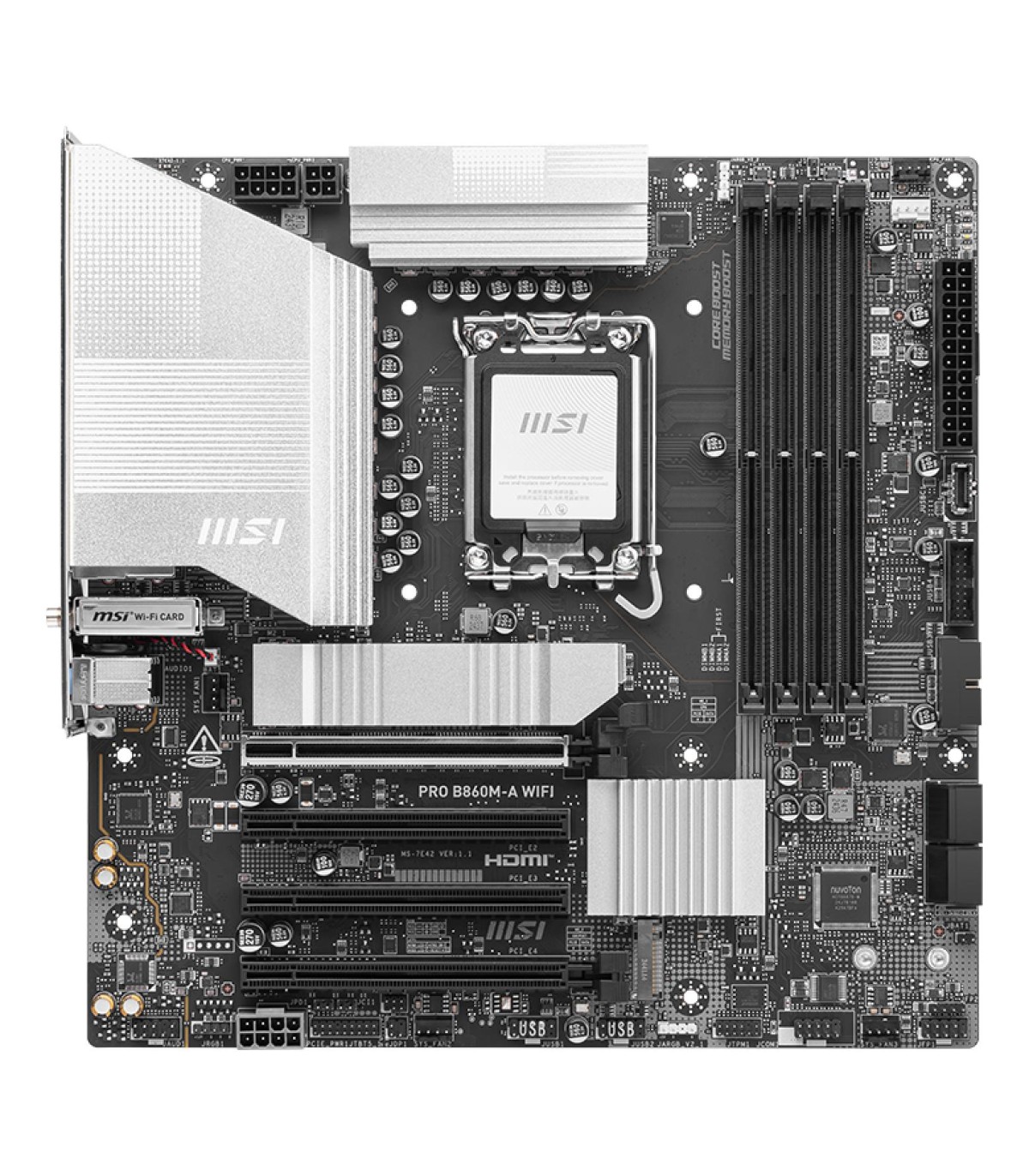

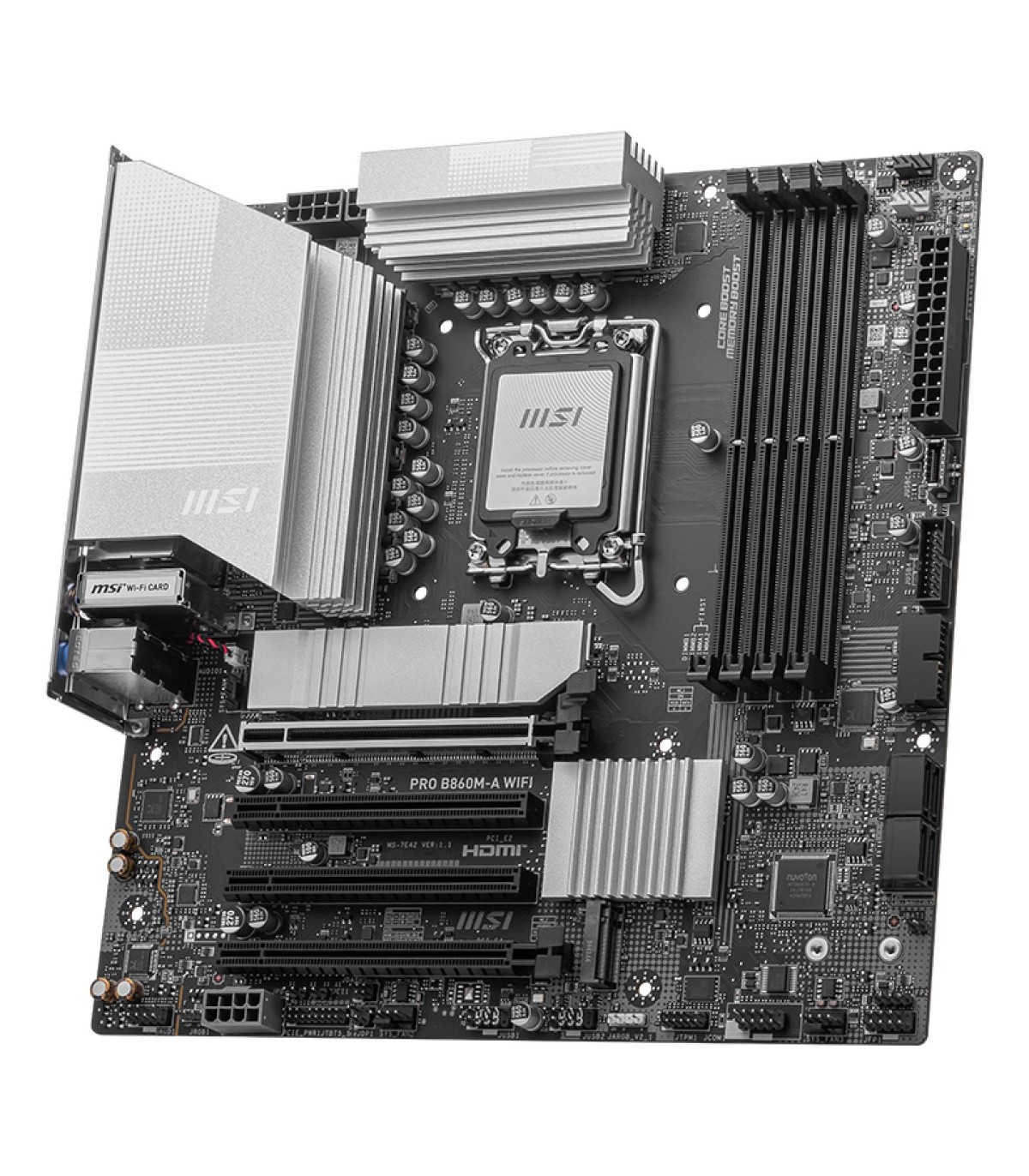

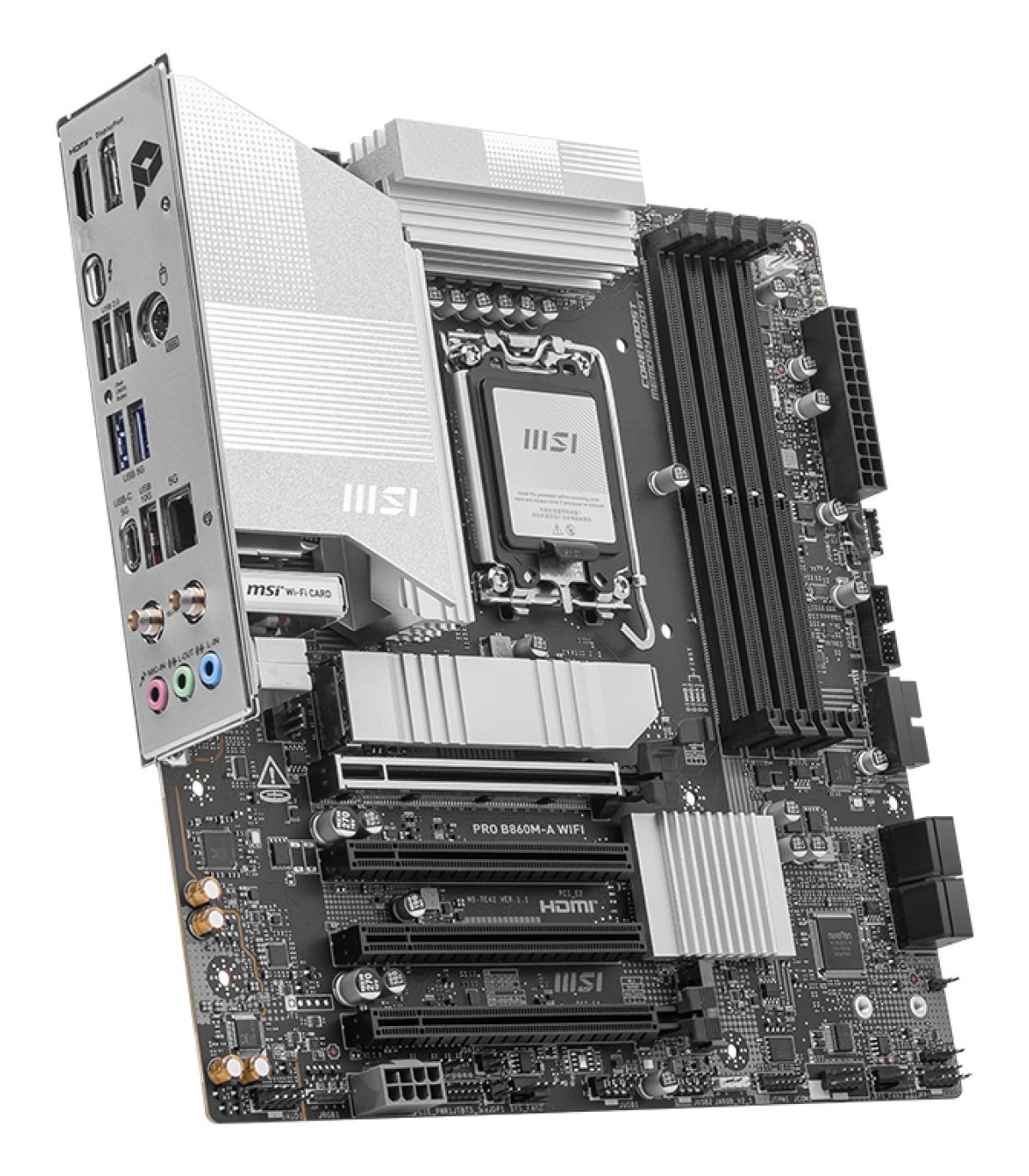

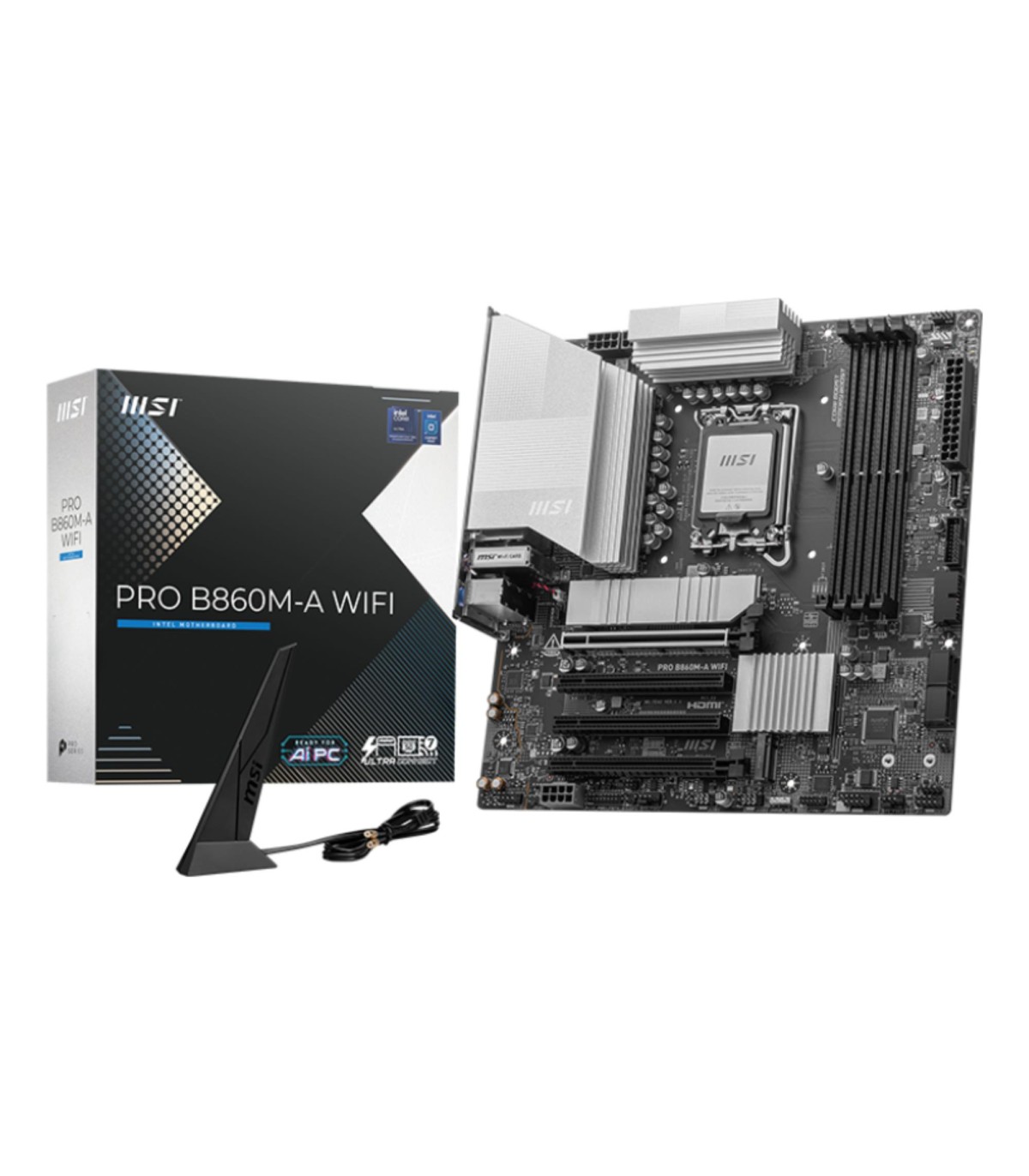

MSI Mainboard Intel B860 Express LGA1851 Micro-ATX Memory DDR5 Memory slots 4 PROB860M-AWIFI

Andmeside

Bluetooth

Yes

Muud funktsioonid

Depth

243.84 mm

Width

243.84 mm

Unit Box Width

0.275

Unit Box Length

0.285

Unit Box Height

0.07

Category Code

MBI

Model

PRO B860M-A WIFI

Bluetooth version

5.4

Unit Calculated Volume

0.006715 cubm

Unit Calculated Weight

1.51 kg

Units per Shipping Box

10

Summary

MSI PRO B860M-A WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported

Product colour

Black

HDMI ports quantity

1

HDMI version

2.1

Wi-Fi

Yes

Windows operating systems supported

Windows 11 x64

Ethernet LAN (RJ-45) ports

1

Ethernet LAN

Yes

Wi-Fi standards

802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)

USB 2.0 ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Number of storage drives supported

7

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

Number of HDDs supported

4

Processor manufacturer

Intel

Maximum internal memory

256 GB

Memory channels

Dual-channel

On-board graphics card

No

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

Audio chip

Realtek ALC897

Motherboard chipset

Intel B860

Number of SATA III connectors

4

Total number of SATA connectors

4

PCI Express x16 (Gen 5.x) slots

1

Audio output channels

7.1 channels

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

Supported storage drive types

HDD & SSD

Supported memory clock speeds

4800/6400/8800 MHz

Motherboard form factor

Micro ATX

Component for

PC

Compatible processor series

Intel Core Ultra (Series 2)

Processor socket

LGA 1851 (Socket V1)

Supported processor sockets

LGA 1851

Supported memory clock speed (max)

8800 MHz

RAID levels

0/1/10/5

RAID support

Yes

Supported storage drive interfaces

M.2,Micro SATA III

CPU fan connector

Yes

Number of CPU fan connectors

1

Number of RGB LED pin headers

3

RGB LED pin header

Yes

USB 2.0 connectors

4

USB 3.2 Gen 1 (3.1 Gen 1) connectors

4

Ethernet interface type

5 Gigabit Ethernet

Motherboard chipset family

AMD

1st M.2 highest PCI Express generation

5.0

1st M.2 largest key size

2280

Number of M.2 (M) slots

3

PCI Express x16 (Gen 4.x) slots

3

ACPI version

6.5

BIOS memory size

256 Mbit

BIOS type

UEFI AMI

System Management BIOS (SMBIOS) version

3.7

Number of water pump connectors

1

2nd M.2 highest PCI Express generation

4.0

2nd M.2 largest key size

2280

3rd M.2 highest PCI Express generation

4.0

3rd M.2 largest key size

2280

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Maximum internal memory supported by processor

256 GB

ECC сompatibility

Non-ECC
